Kopf, Au
Kopf, Au

Project Information

98_19

  • Project Leader
    DI Stefan Hiebeler
  • Building Site Manager
    Bmst. Wolfgang Elmenreich
  • Builder-Owner
    Thomas Kopf

    Location
    Au

    Completition
    2000

    Project facts
    WNLF 219 m², n.b.ar. 421 m²,
    GFA 520 m², GBV 1.532 m³
    50 kWh/m²a

    Rights
    Text Otto Kapfinger / Hermann Kaufmann WOOD WORKS,
    Translation Bronwen Rolls

    Photo Bruno Klomfar

    Project Stakeholders
    • Structural Engineering
      Rüsch Diem Schuler, Dornbirn


    Kopf, Au

    A pioneering example of prefabricated panel construction using glue-less, diagonally-dowelled, solid timber studs.

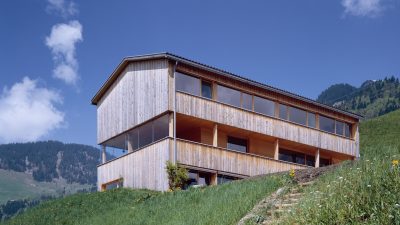

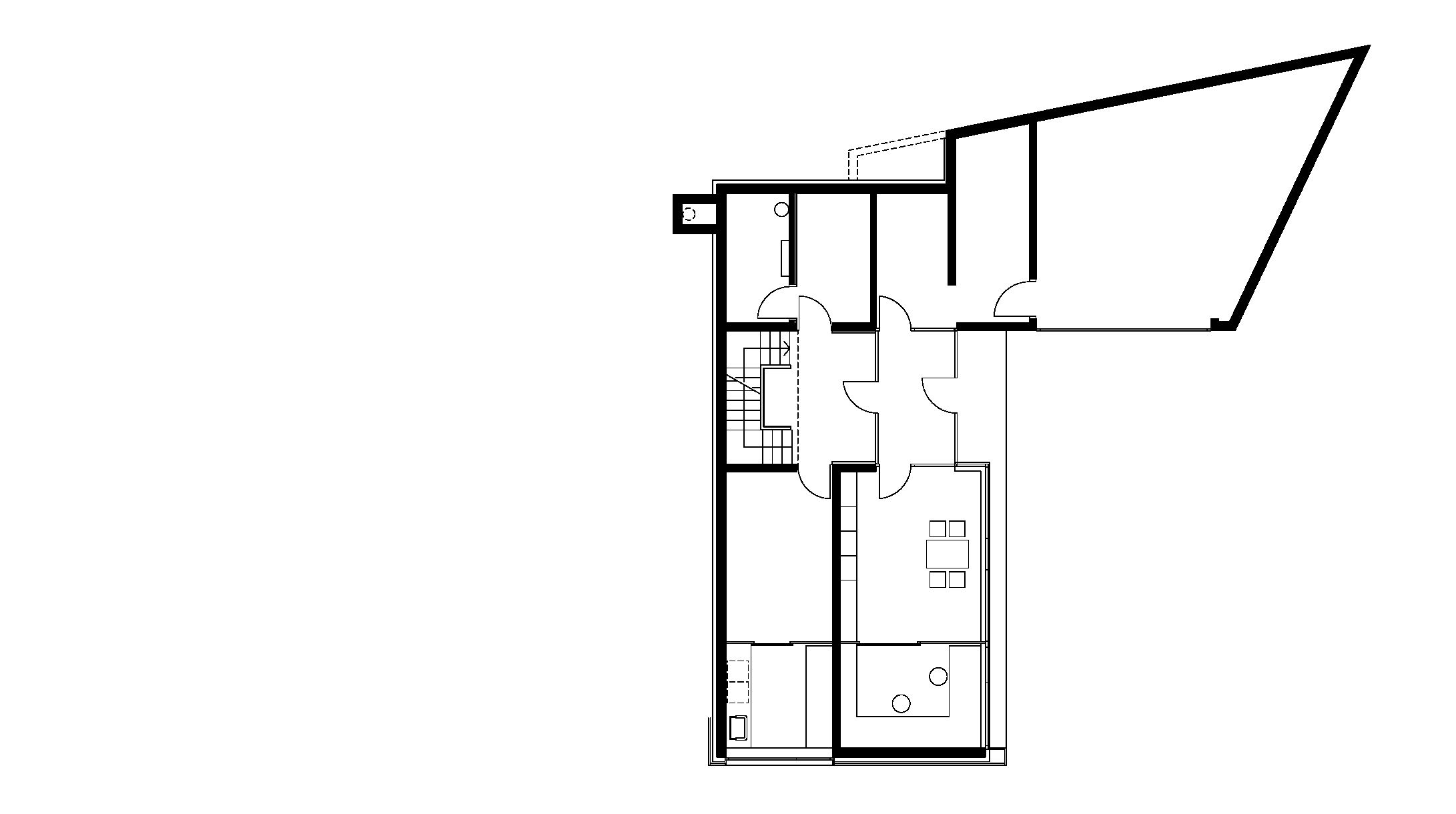

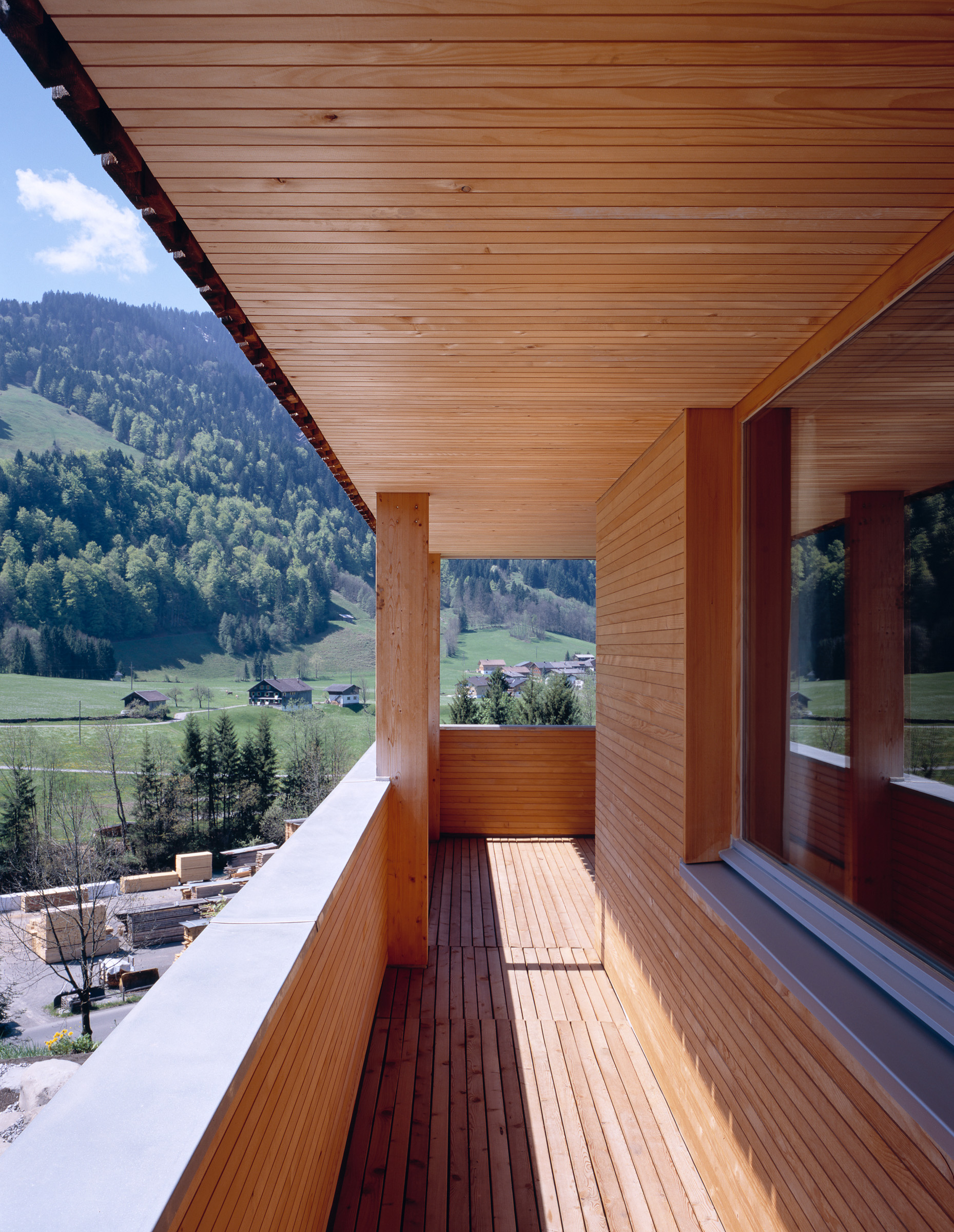

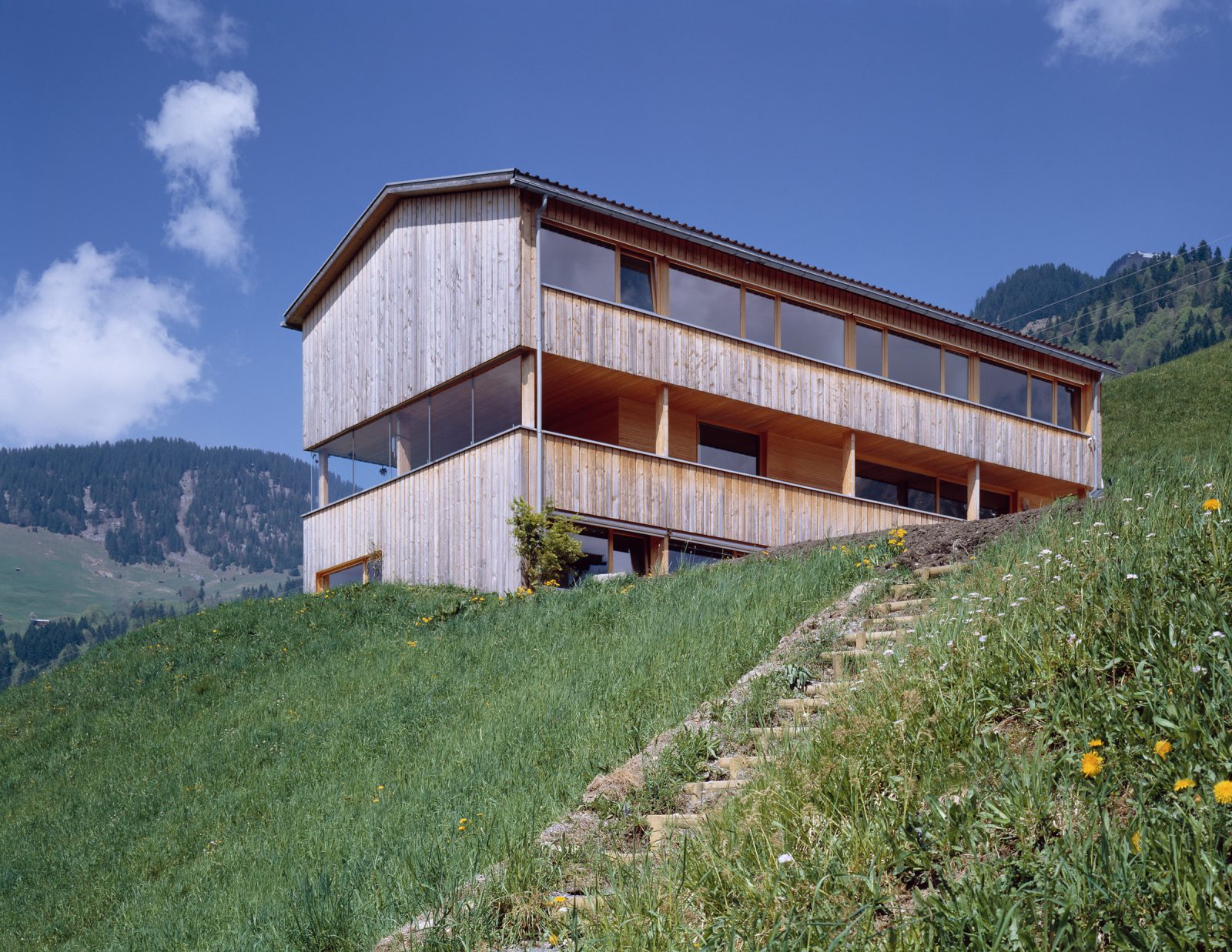

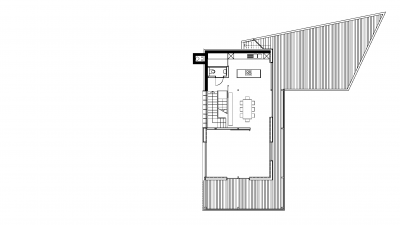

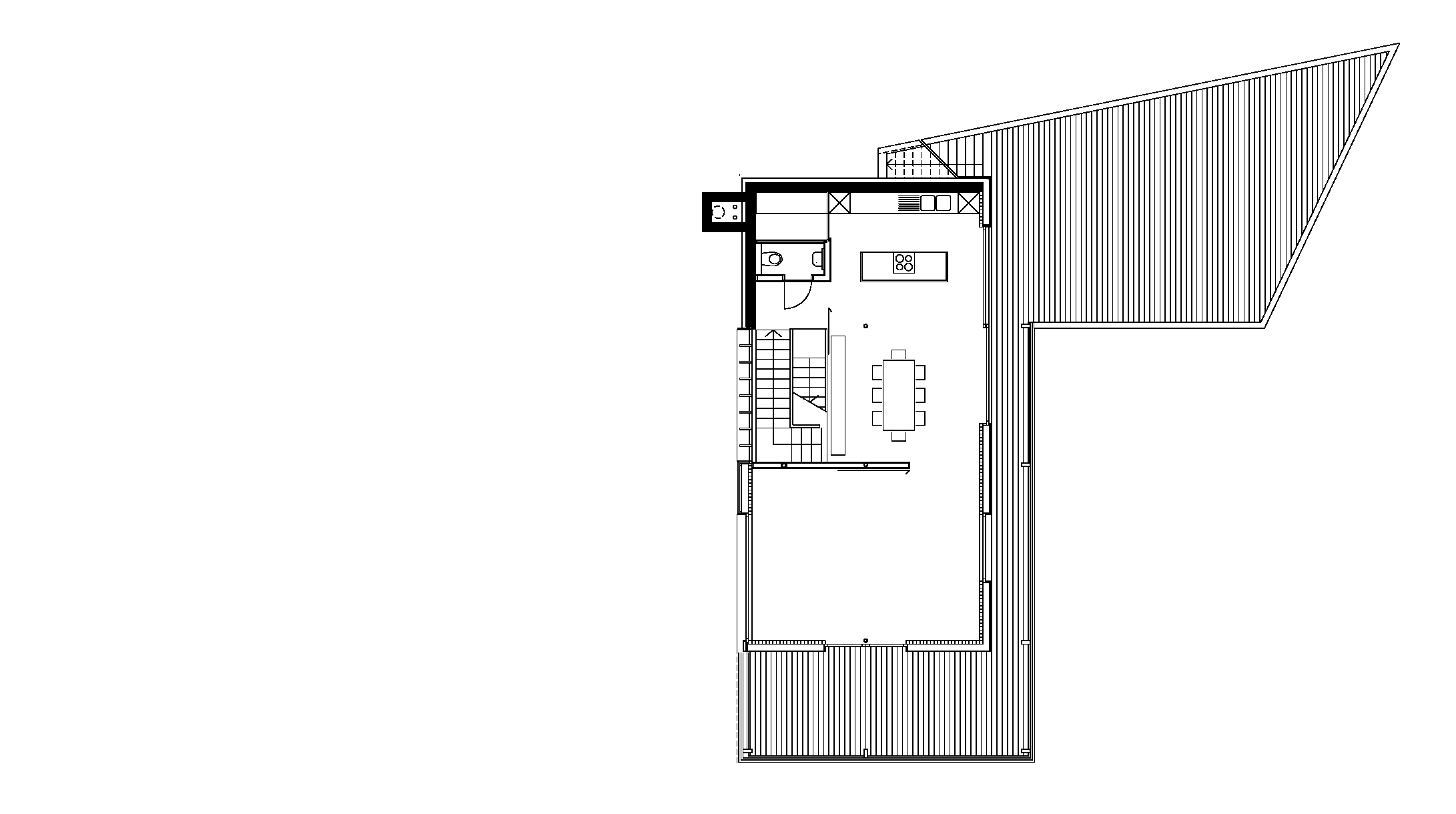

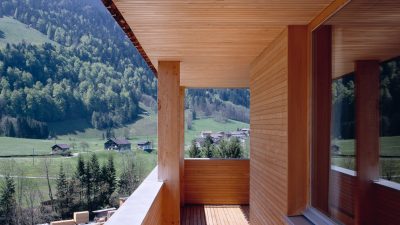

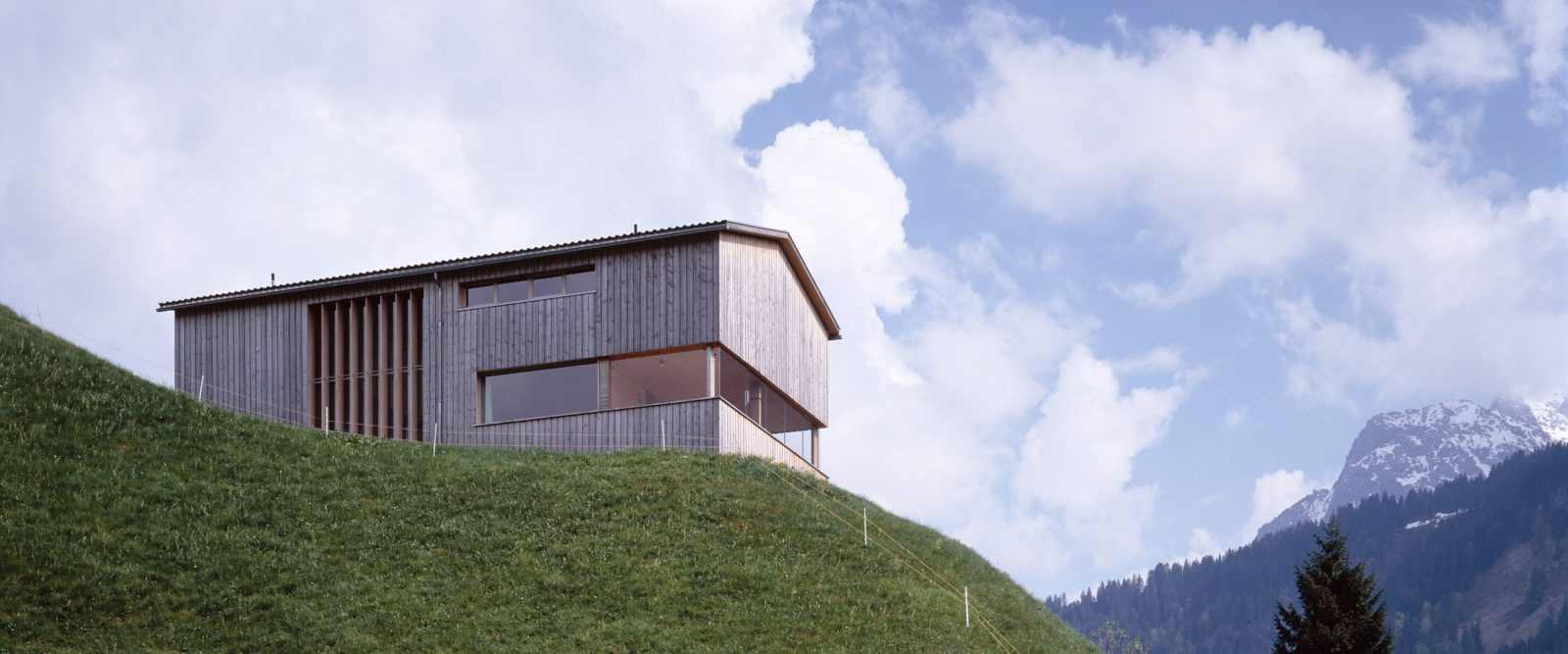

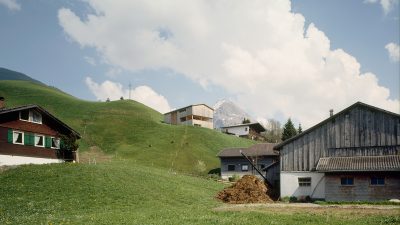

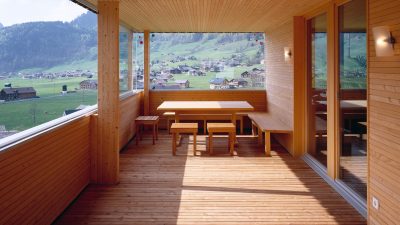

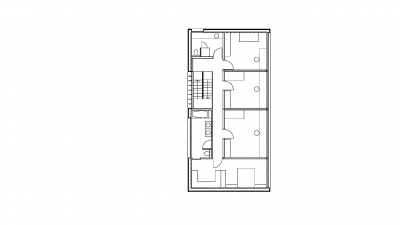

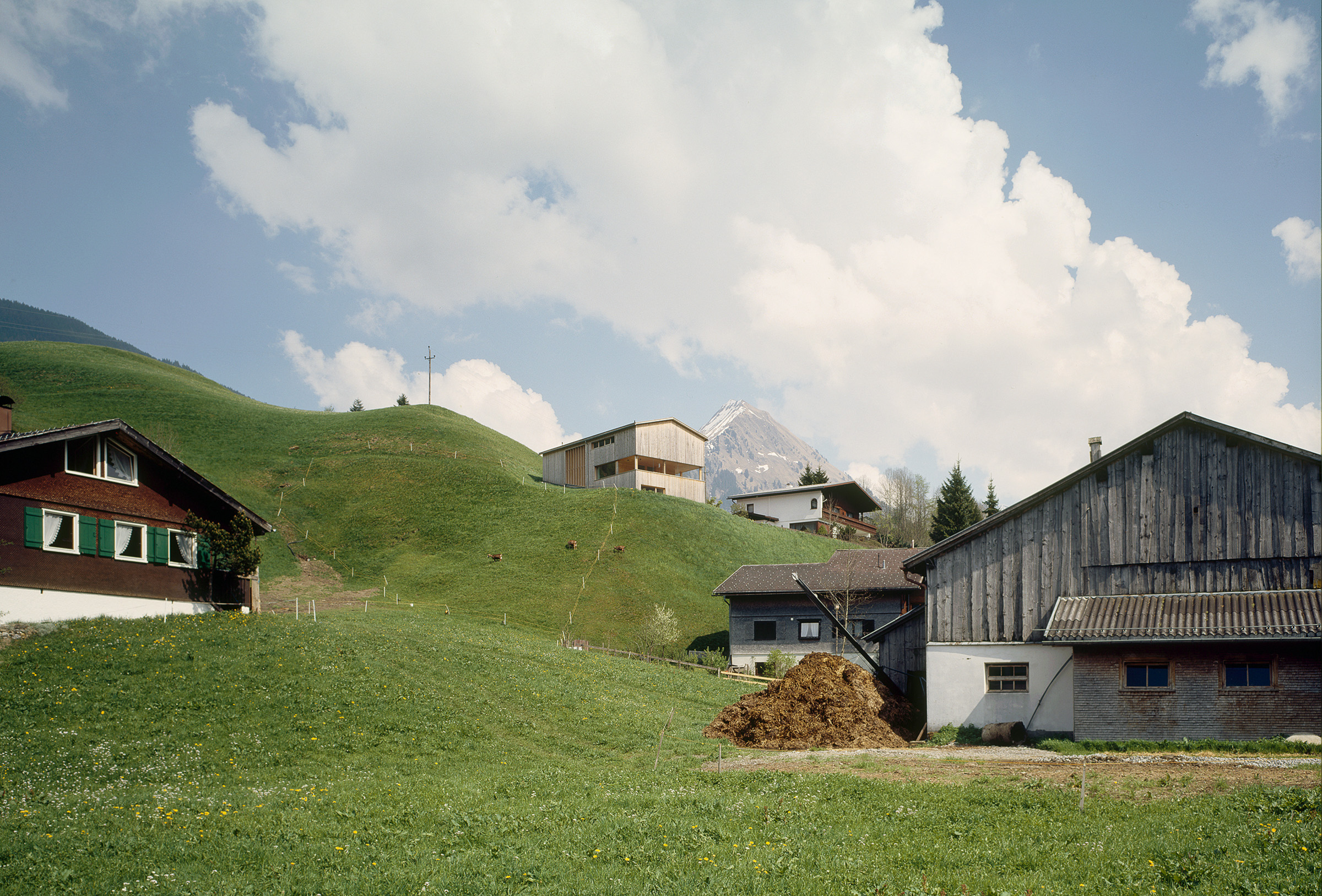

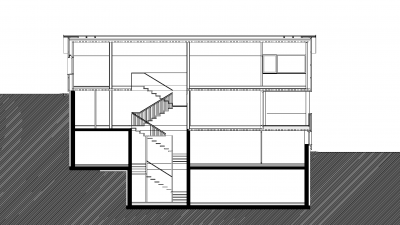

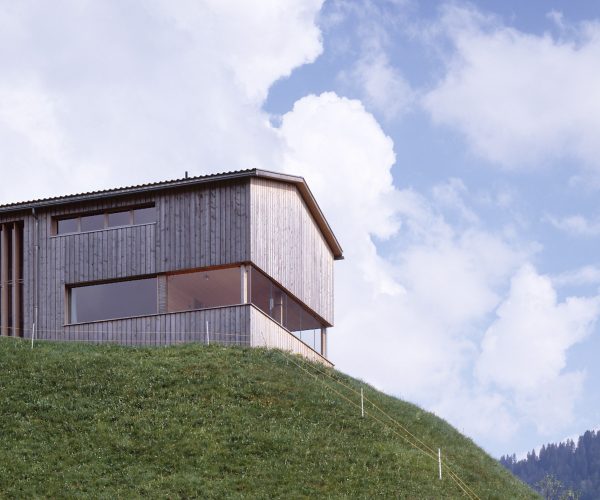

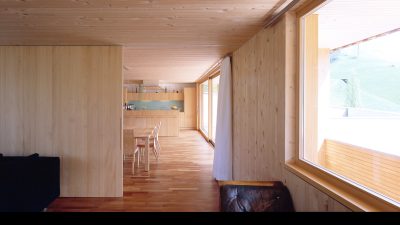

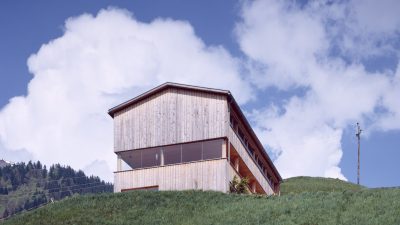

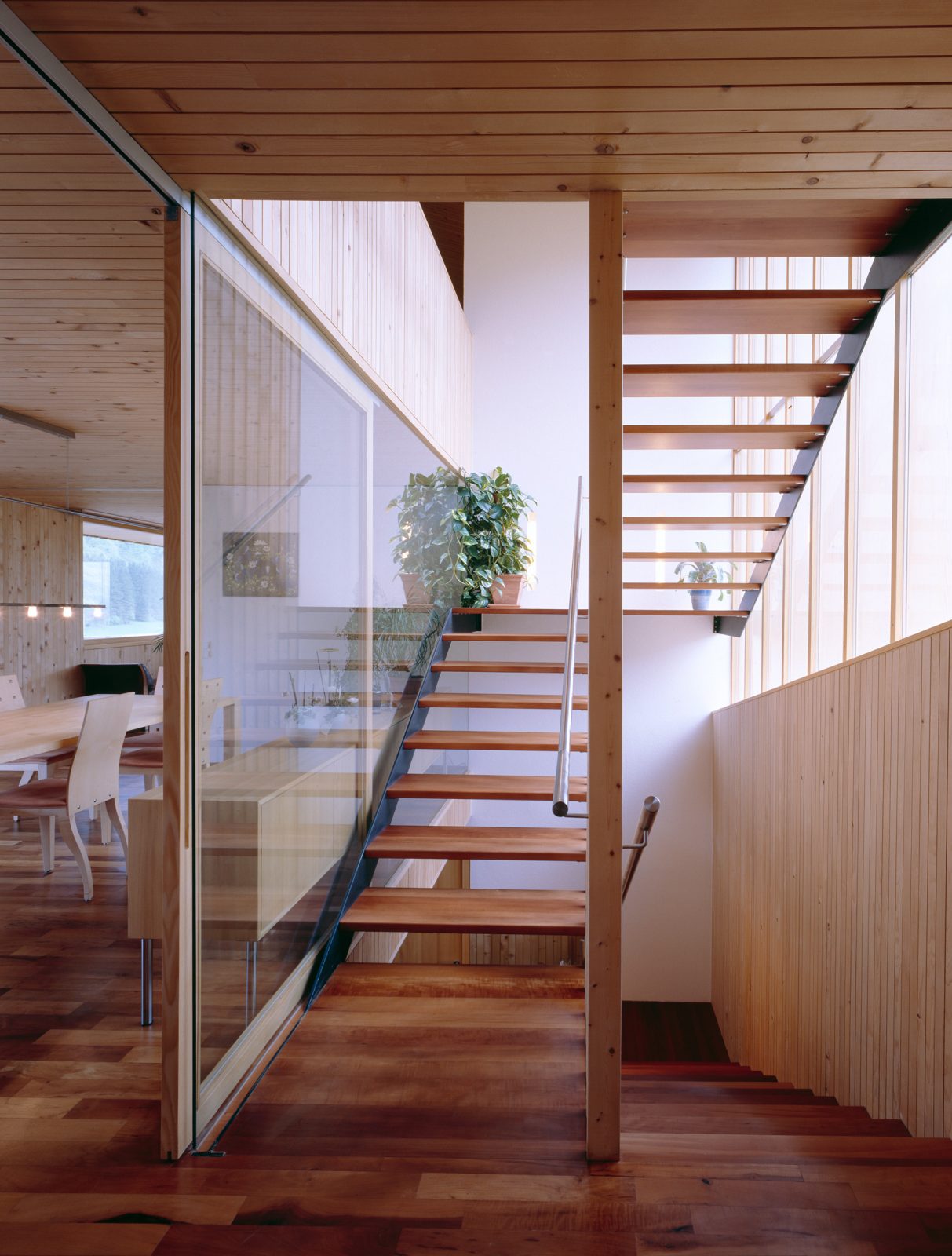

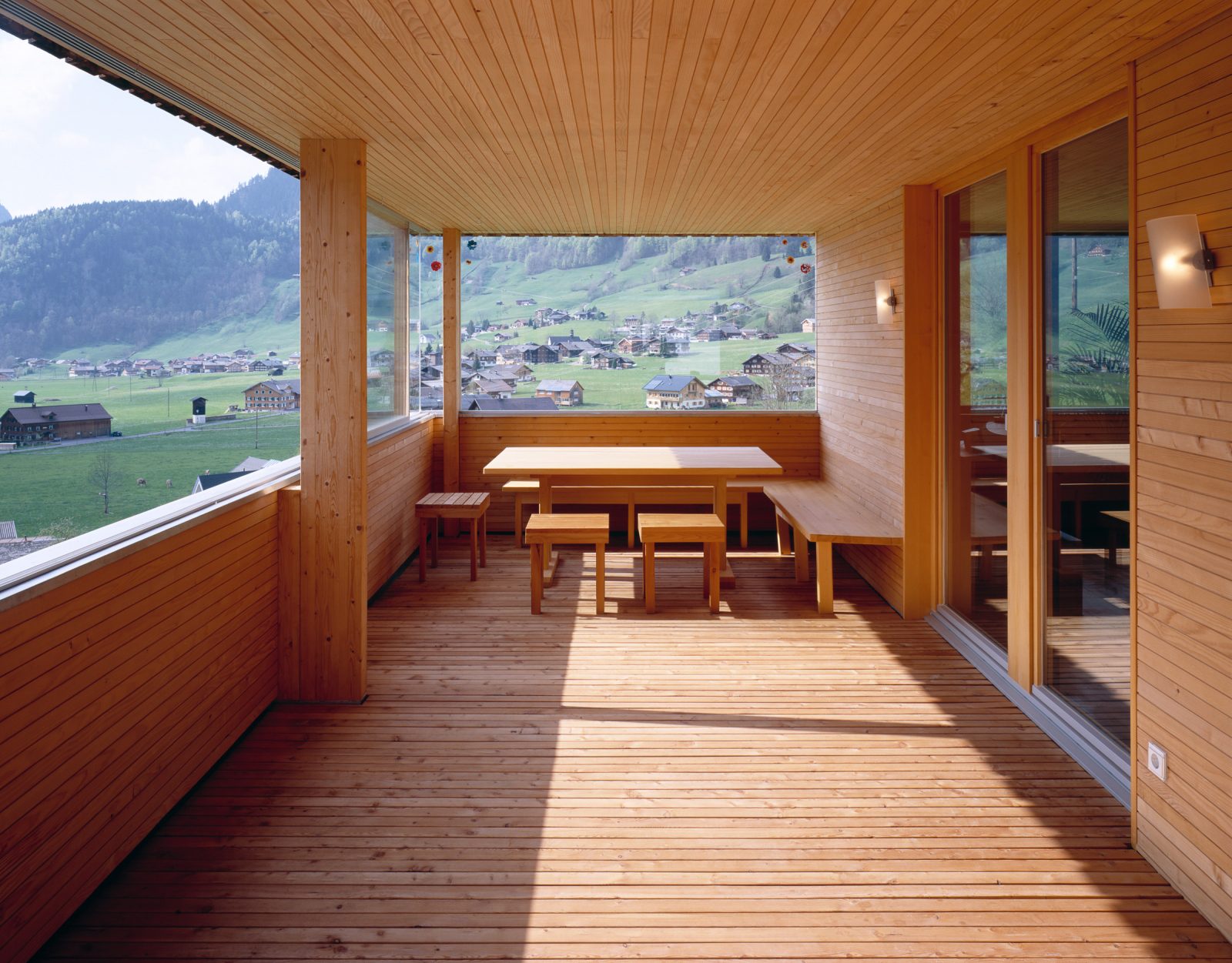

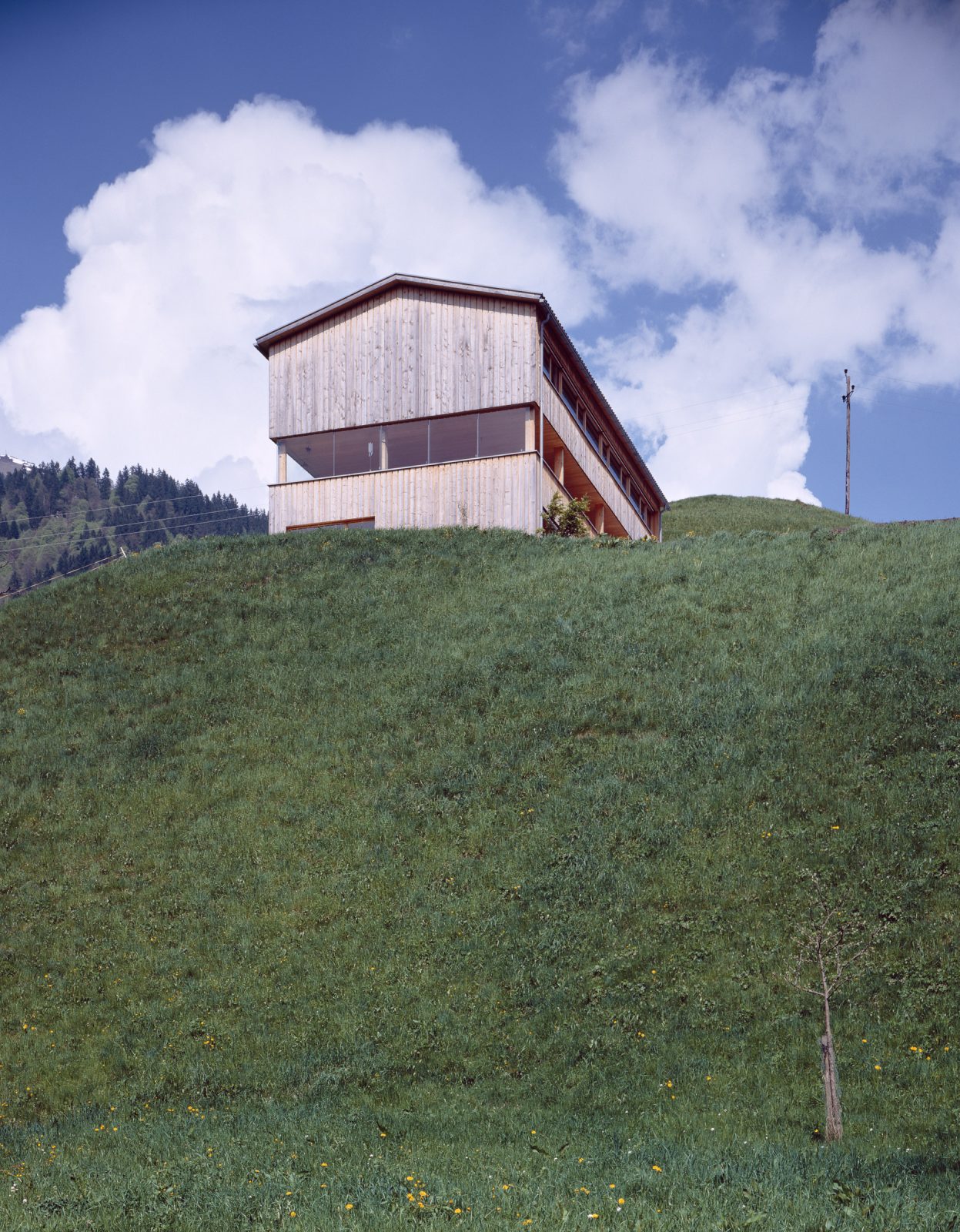

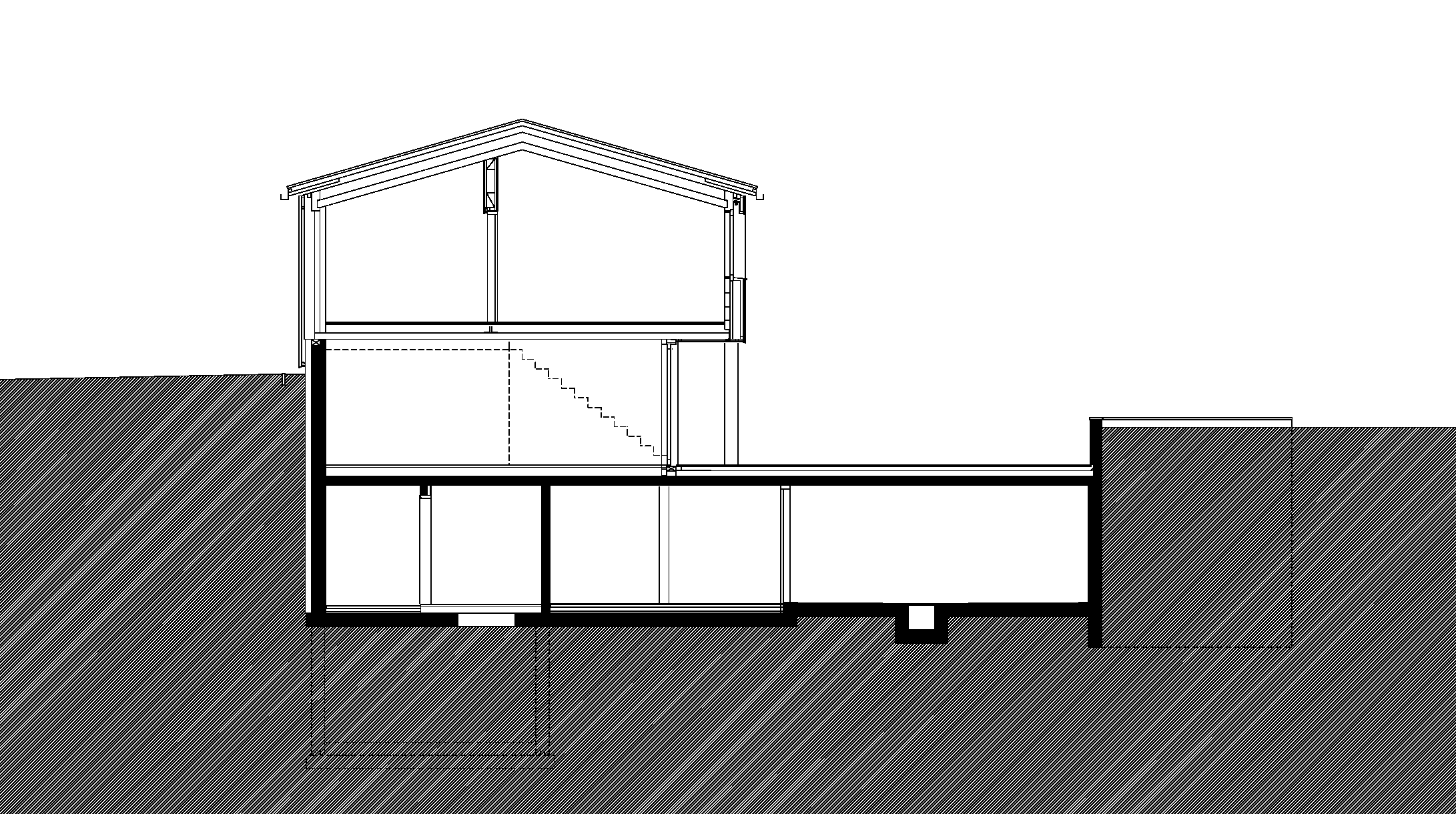

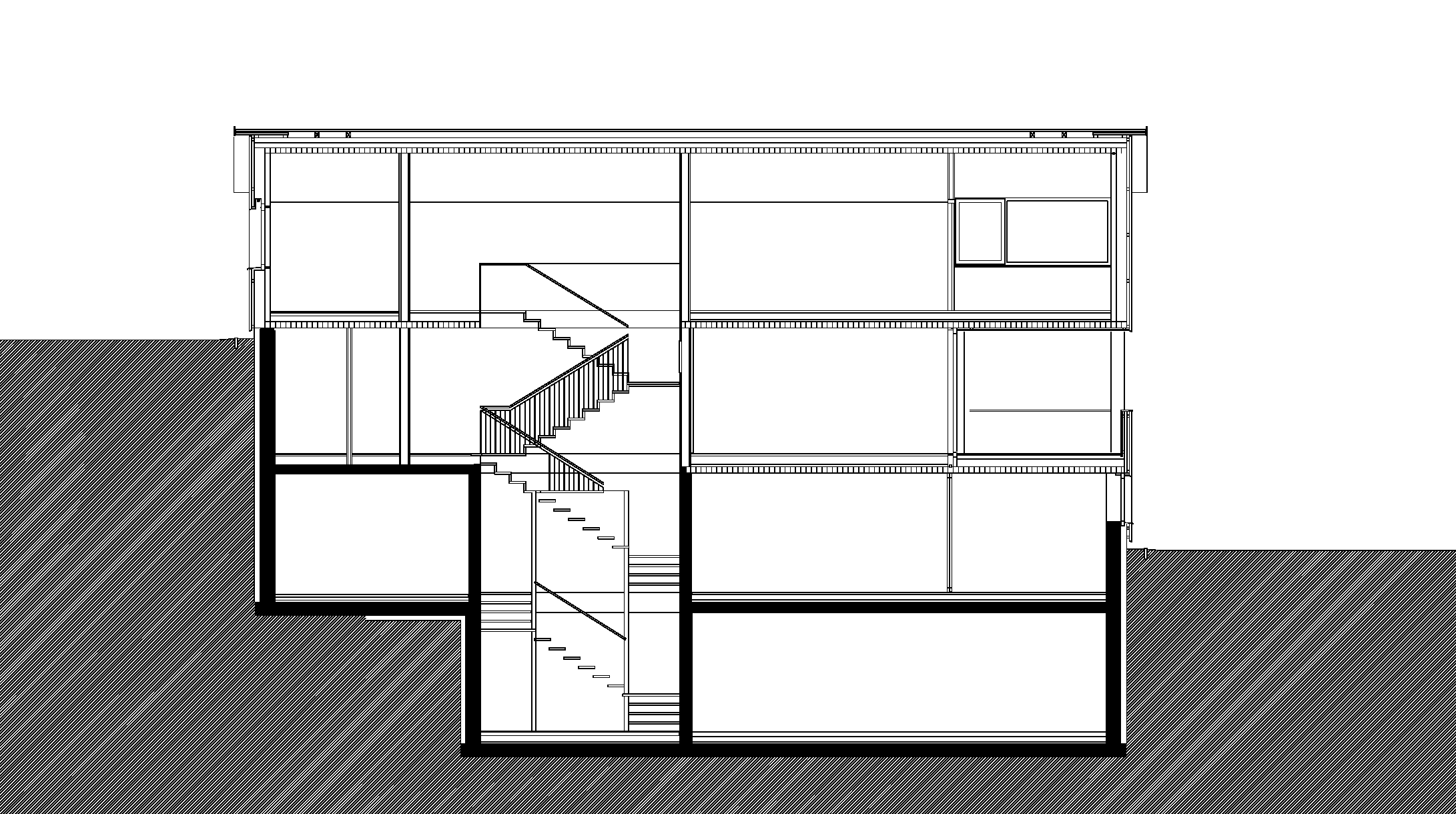

    The client runs a local sawmill which processes spruce, fir and larch from the region into timber for windows and construction, as well as planks for log houses, and is an advocate of glue-less solid timber construction.  His family home, which is integrated into a hillside and houses an office in the basement, is a prototype of the then newly developed solid timber construction method with diagonally dowelled studs. The panel-shaped structural elements are made of solid square timbers (6 x 10 cm) vertically arranged into panels. For environmental reasons, the square timbers are neither glued nor nailed, but jointed with diagonally offset hardwood pins. This method was used to prefabricate the outer walls and the ceiling and roof panels. The story-high external sheathing and the insulated walls were directly delivered to the construction site. The structure and pure materiality of this method determines the ambience of the interior, whereby the roof slabs are arranged in such a manner that they synchronously continue the rhythm of the wall joints. The ceiling above the column-free main story is suspended from the roof support structure with tension rods. Large glass elements open up the house to the south and west. The traditional “Schopf” has been redefined and is located at the gable wall and protected by sliding windows.

    Projektbilder


    Public

      Awards
    • Holzbaupreis Vorarlberg
      2001 (Auszeichnung)
      Publications
    • Rheindelta Haus
      ZN Z-048, Weisstanne, Brosch. D. Vorarlb. Landwirtschaftskammer1999
    • Wohnhaus in Au
      ZN Z-086, Detail, Bauen mit Holz 05/2002, S.612-615
    • Haus Kopf
      ZN B-029, L.Berta und M.Bovati, Progetti di architettura bioecologica, S.162-167
