Project Information
Architekturbüro Dipl. Ing. Christian Lenz ZT GmbH
Andreas Ströhle M.Sc.
Martin Rümmele
BM DI Eugen Keler
Arch. DI Roland Wehinger
BM DI Eugen Keler
Builder-Owner
Gemeindeverband Altstoffsammelzentrum, Hofsteig
Location
Lauterach
Completition
2017
Project facts
n.b.ar. warm 81,19 / cold74,69 /
Hall including green areas, saw-tooth ramp, driveways, warehouse
OG 2581,51 m²,
GFA 2812,7 m², GBV 23459,8 m³
Energy 71 kWh/m²a
Project Phases
Competition
Implementaion
Rights
Photo Norman Radon
Text HK Architekten, Englisch: Bronwen Rolls
- Structural Engineering
merz kley partner ZT GmbH, Dornbirn - Building Labourer Coordination Laws
Gau Kurt Planung u. Baukoordination, Feldkirch - Heating Ventilation and Sanitary Planning
Technisches Büro - Herbert Roth, Lauterach - Electronics Planning
elplan Lingg Elektroplanungs GmbH, Schoppernau - Building Physics
Dipl. Ing. Bernhard Weithas GmbH, Lauterach - Fire Protection Planning
k&m Brandschutztechnik GmbH, Lauterach - Geotechnical Engineering
3P-Geotechnik ZT GmbH, Bregenz - Drainage Planning
Rudhardt+Gasser - Ziviltechniker, Bregenz - Building Organisation
Umweltverband Vorarlberg, Dornbirn - Transport Planning
Besch und Partner, Feldkirch - Building Equipment
Stadtbauhof Feldkirch - Local Building Permit
Umweltverband Vorarlberg, Dornbirn

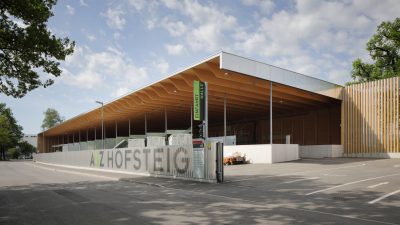

Recycling Centre Hofsteig, Lauterach

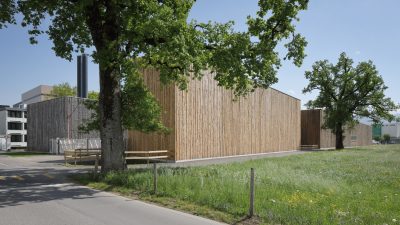

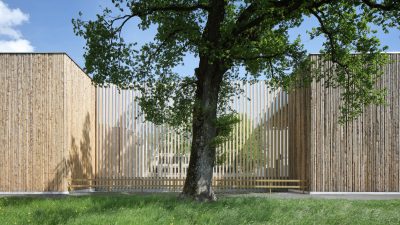

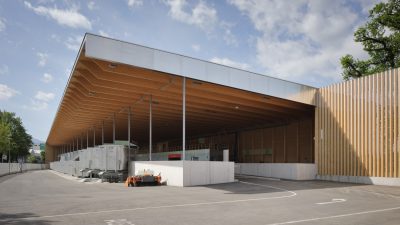

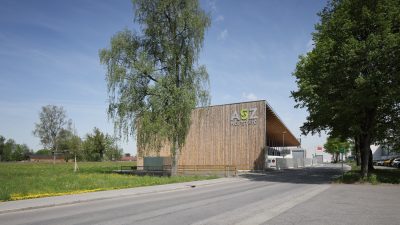

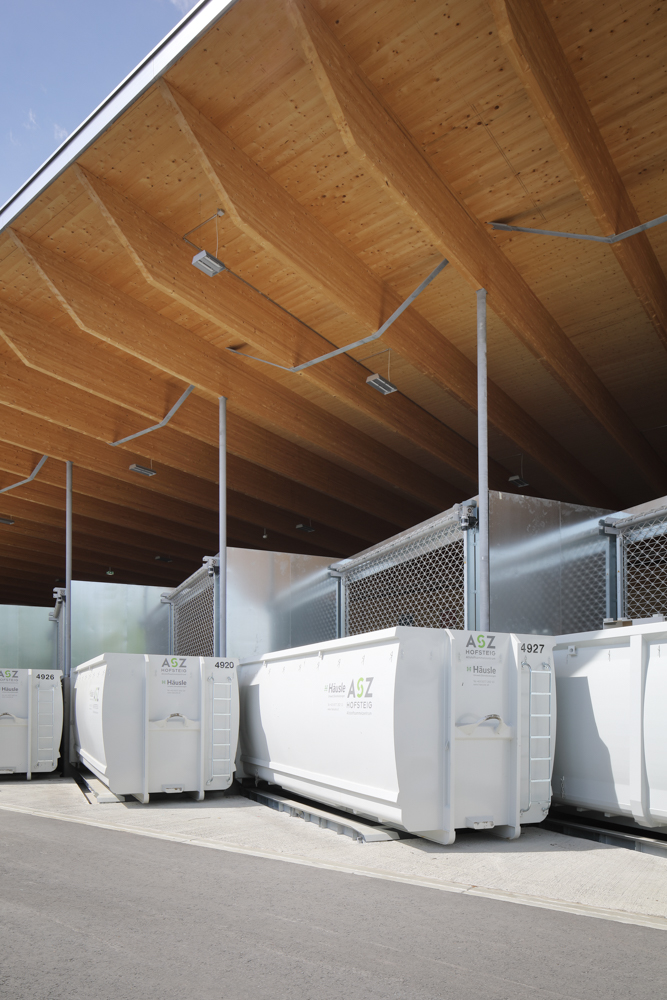

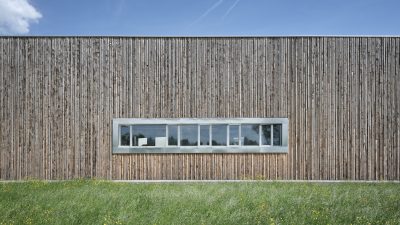

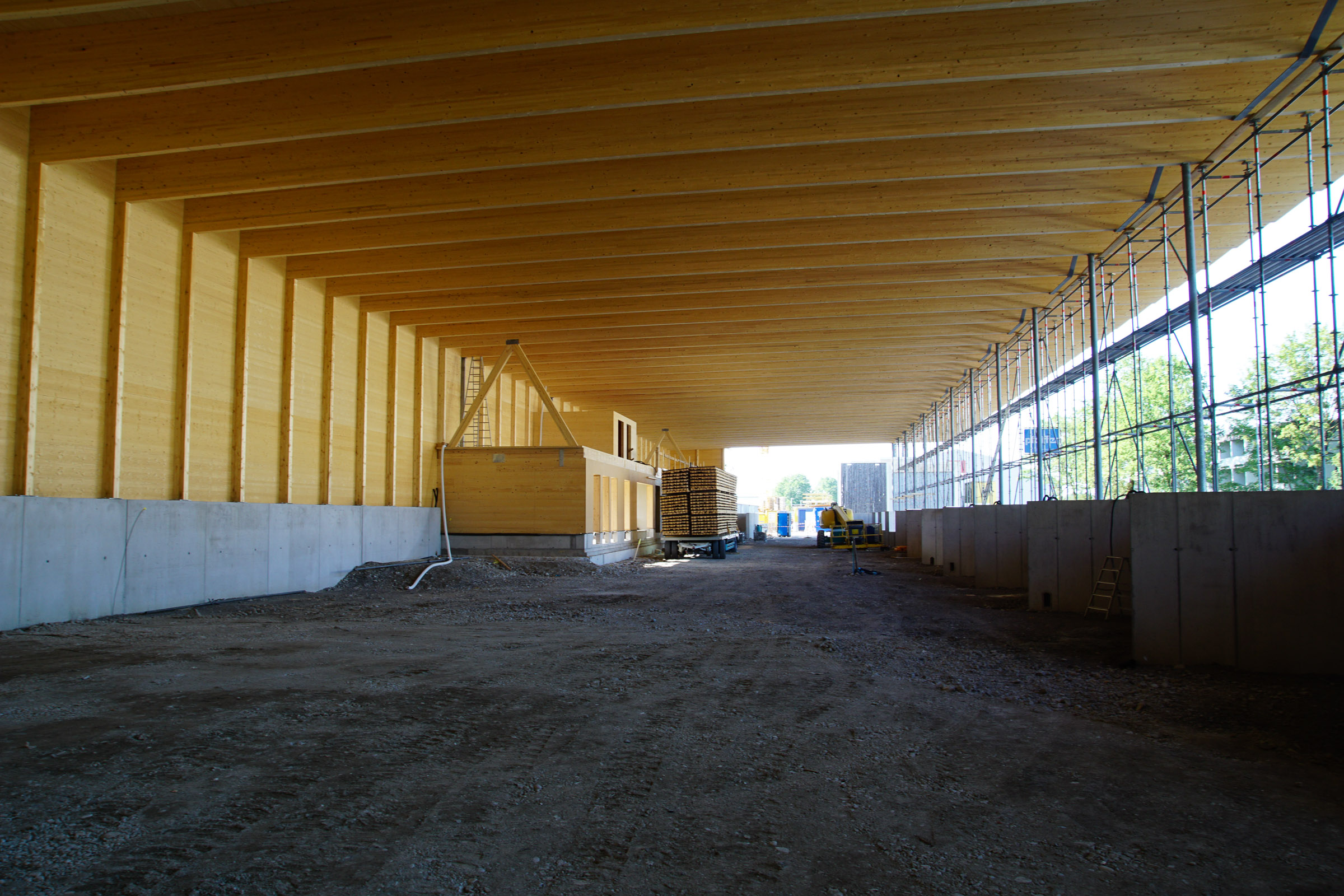

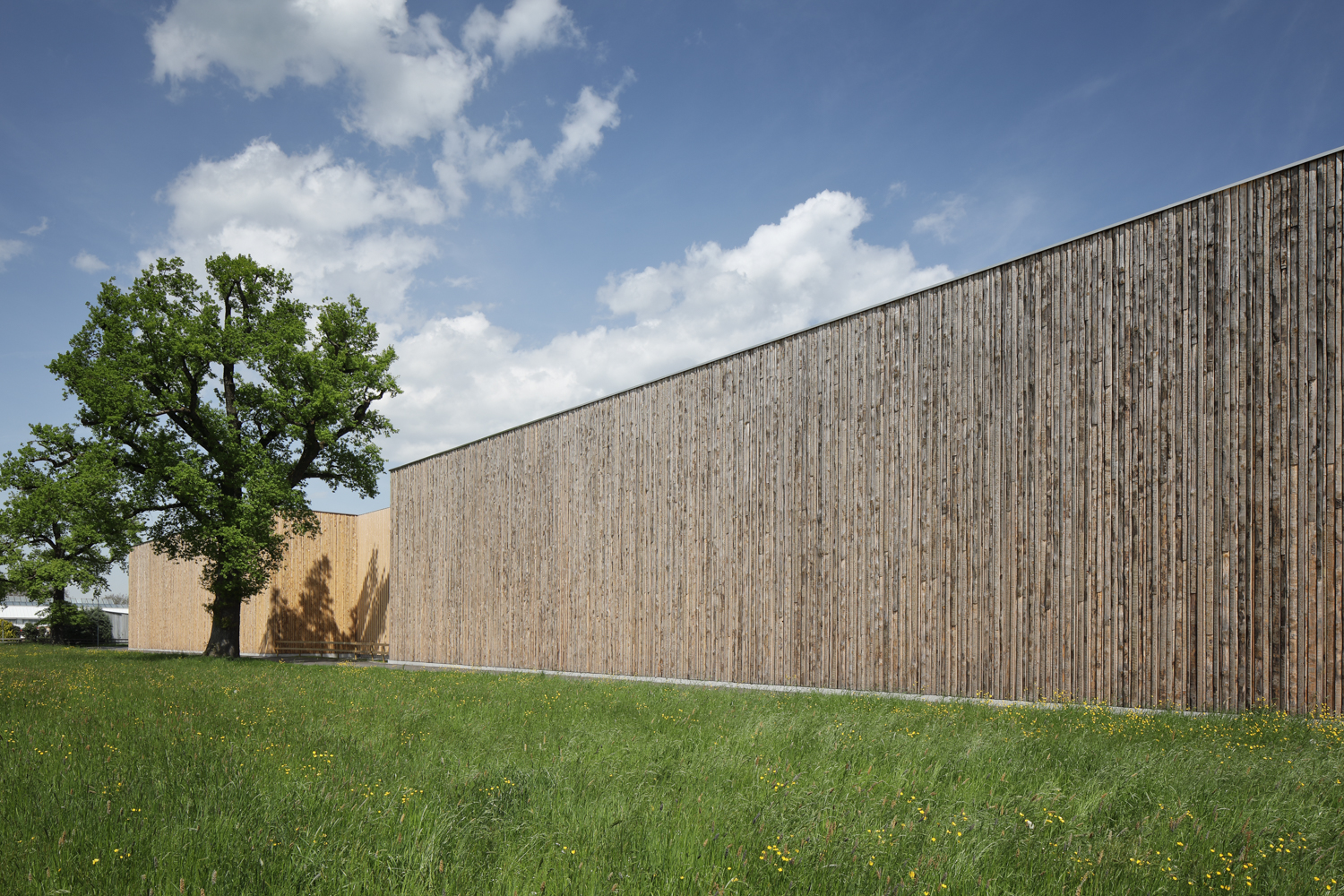

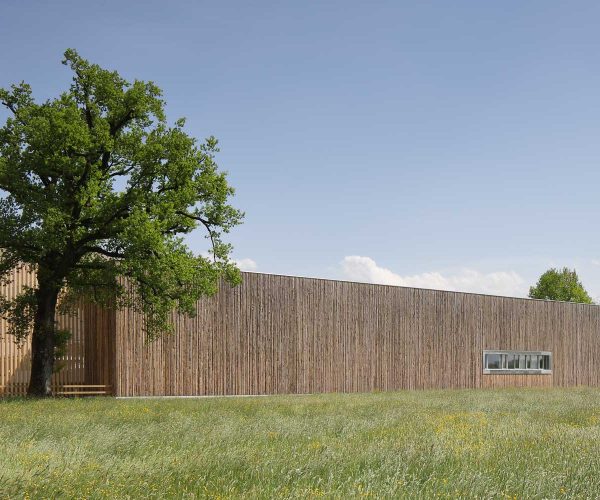

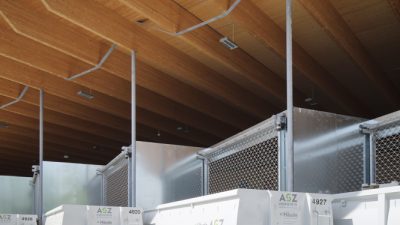

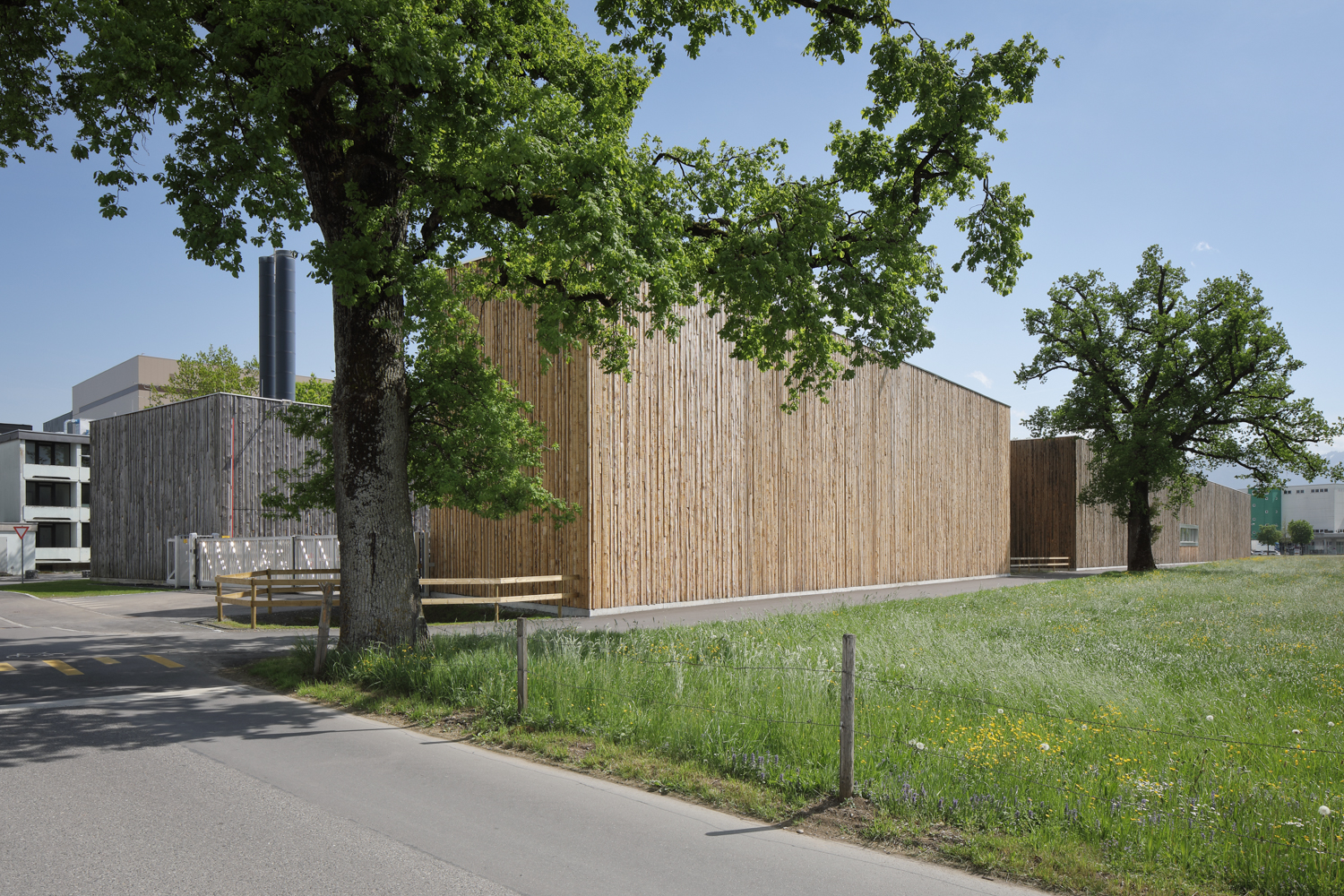

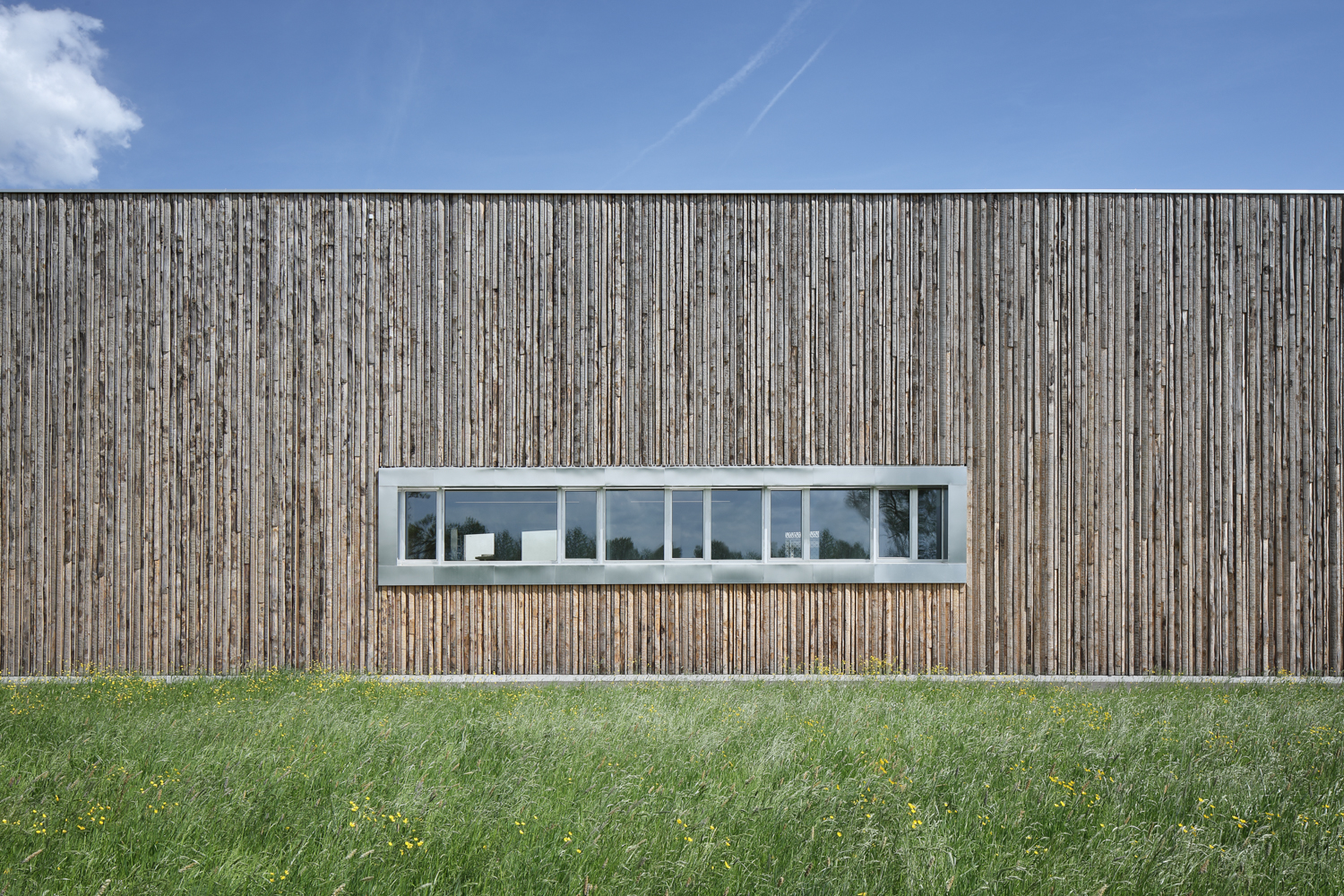

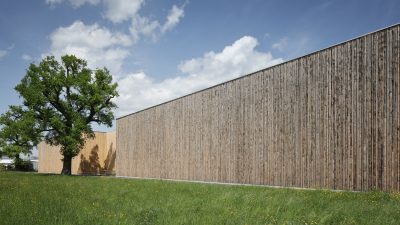

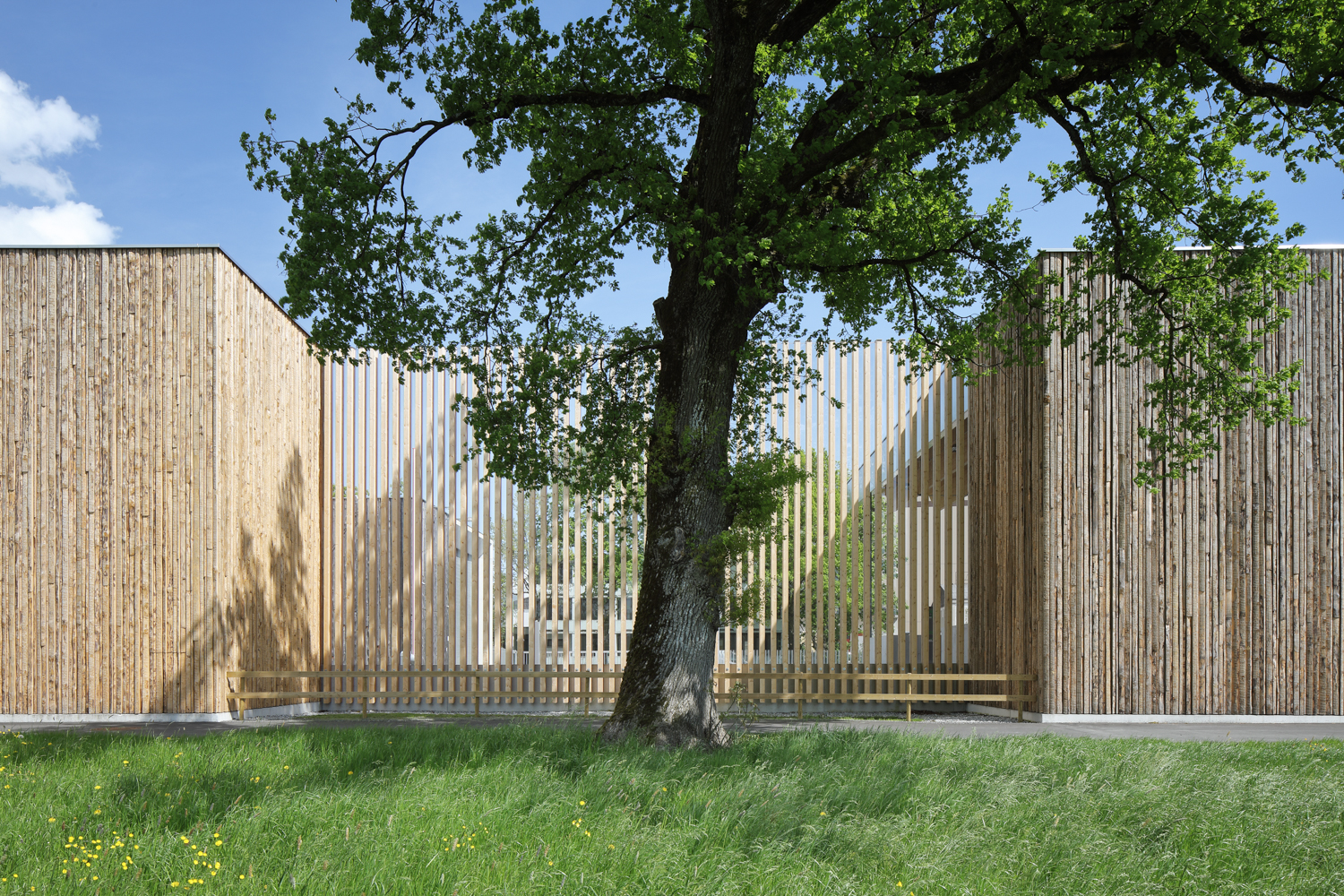

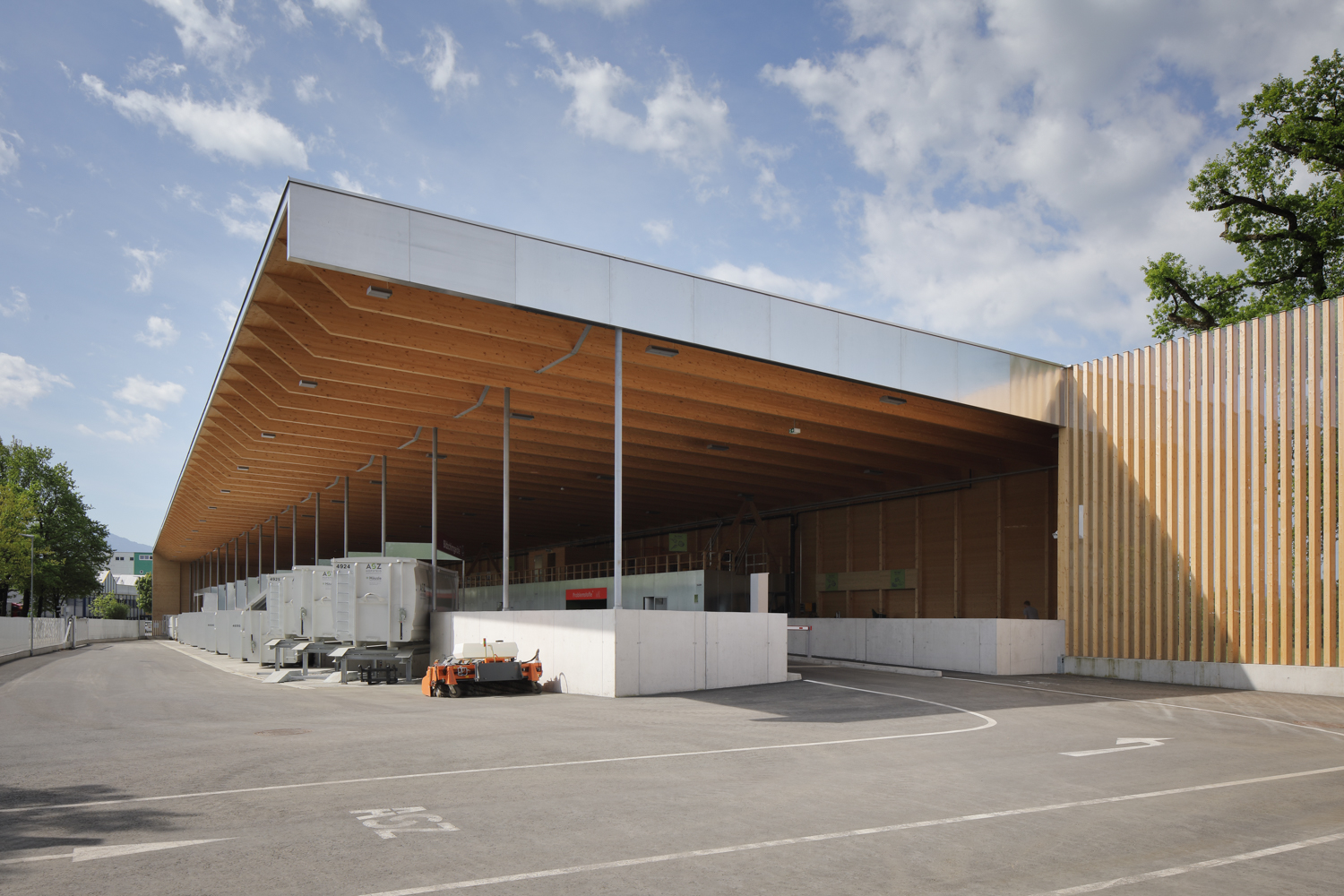

The form and colour language of the architecture acts as a simple framework for the presentation of the recyclable materials. The hall is designed as a pillar-free timber construction and forms an overall ensemble with the existing local biomass power plant and an organic waste centre. This integration was accomplished by the continuation of the existing timber facade of the power plant, which further enhances the overall impression.

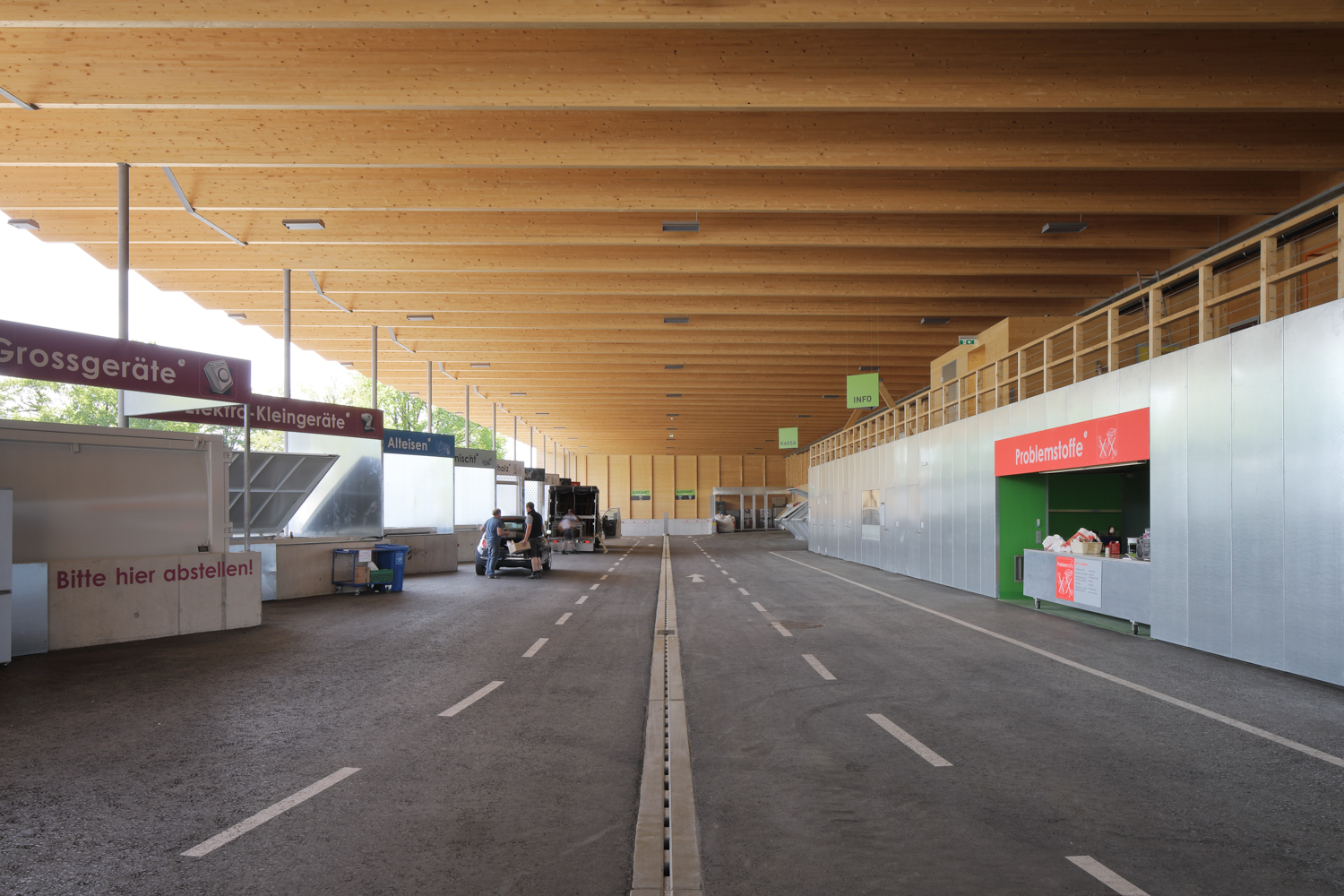

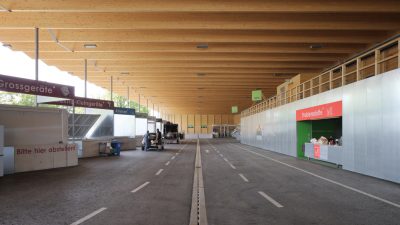

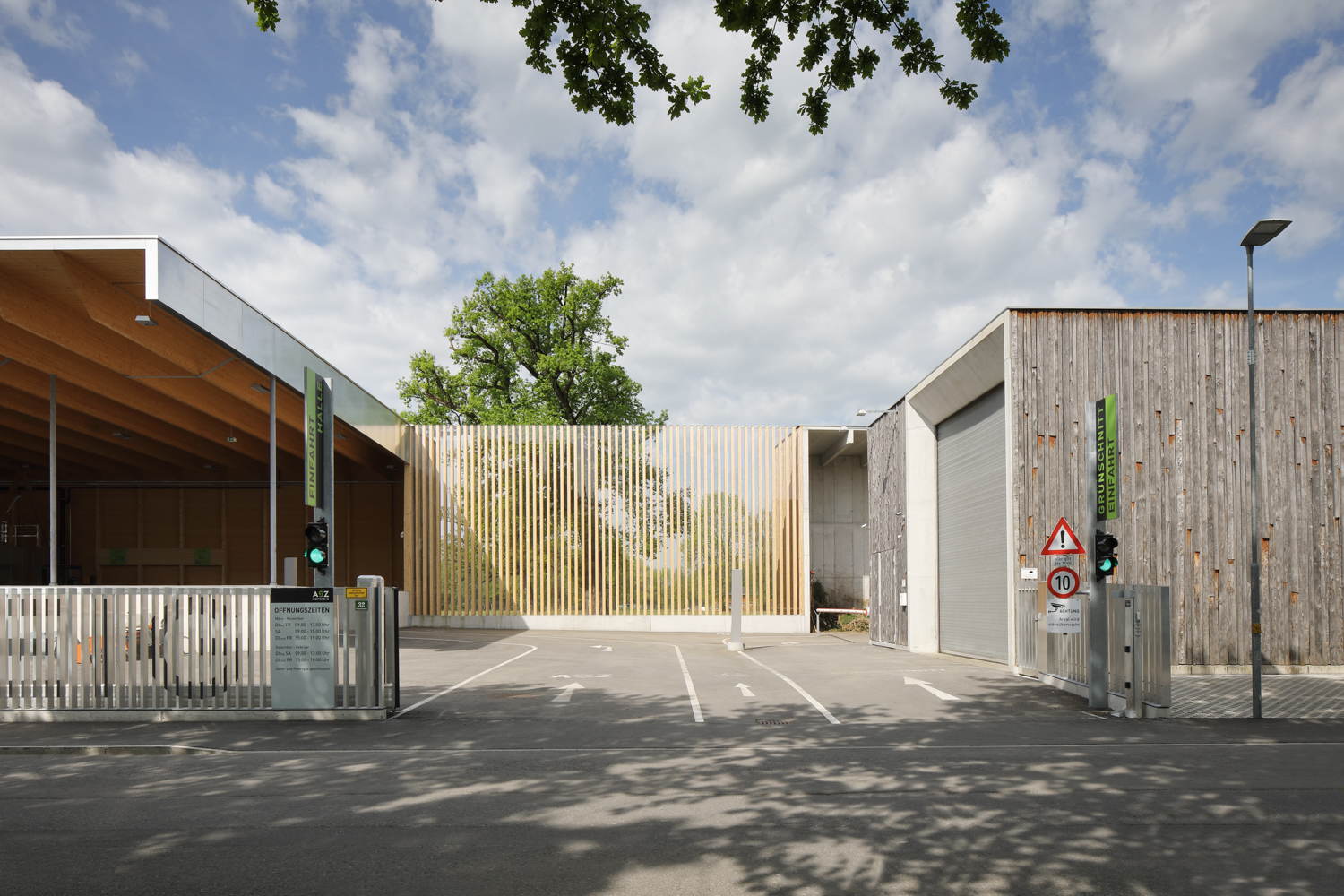

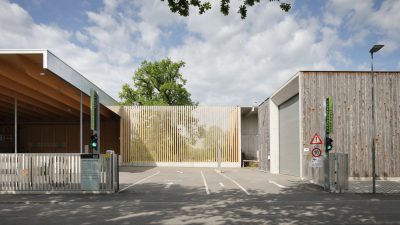

The entire area is accessible to customers via a driveway, which then divides into the different recycling zones. The traffic flow is resolved in such a way that the customer and industrial truck traffic does not cross. Cyclists also get their own unrestricted lane which contributes to the promotion of cycling.

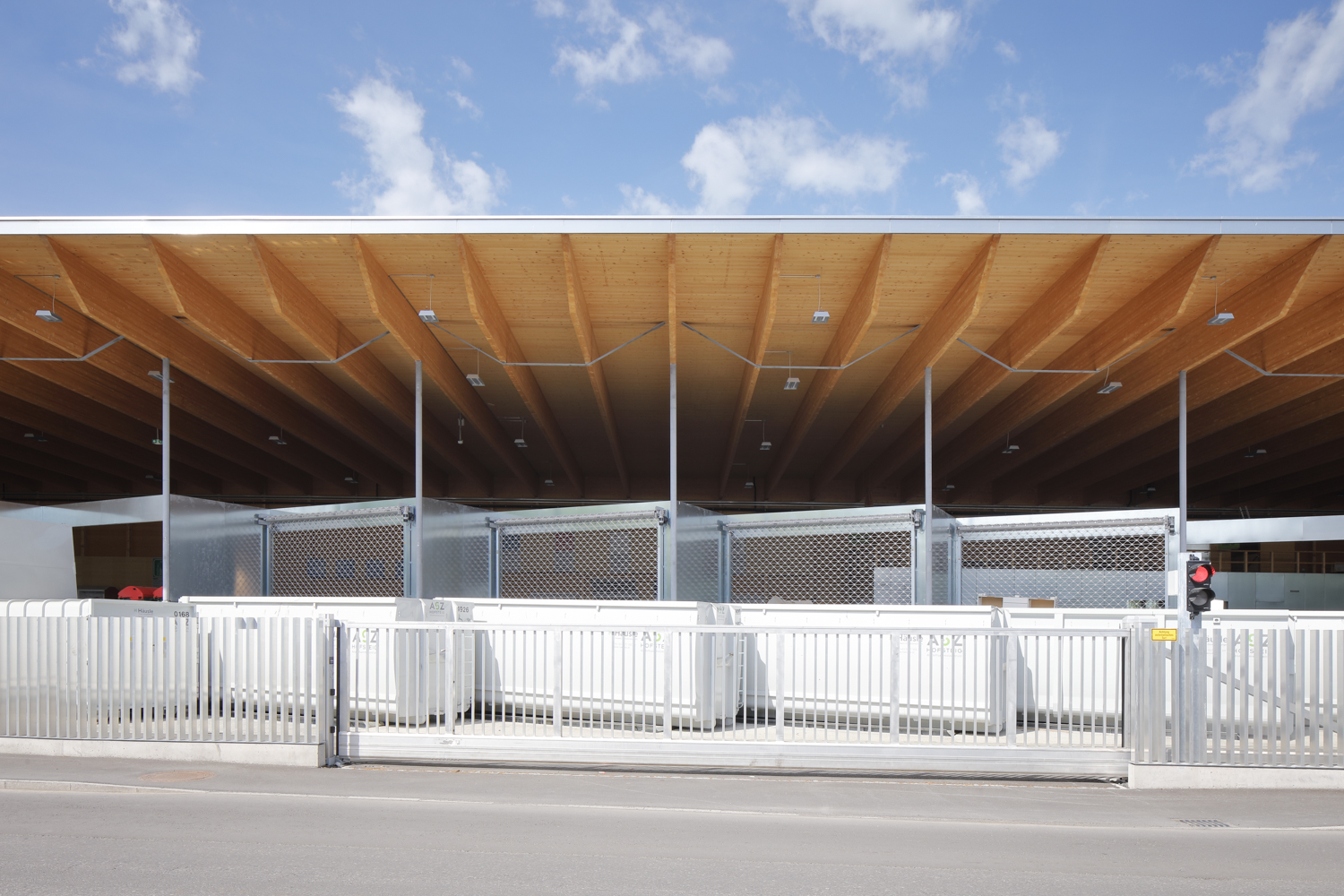

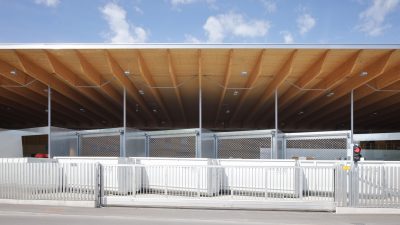

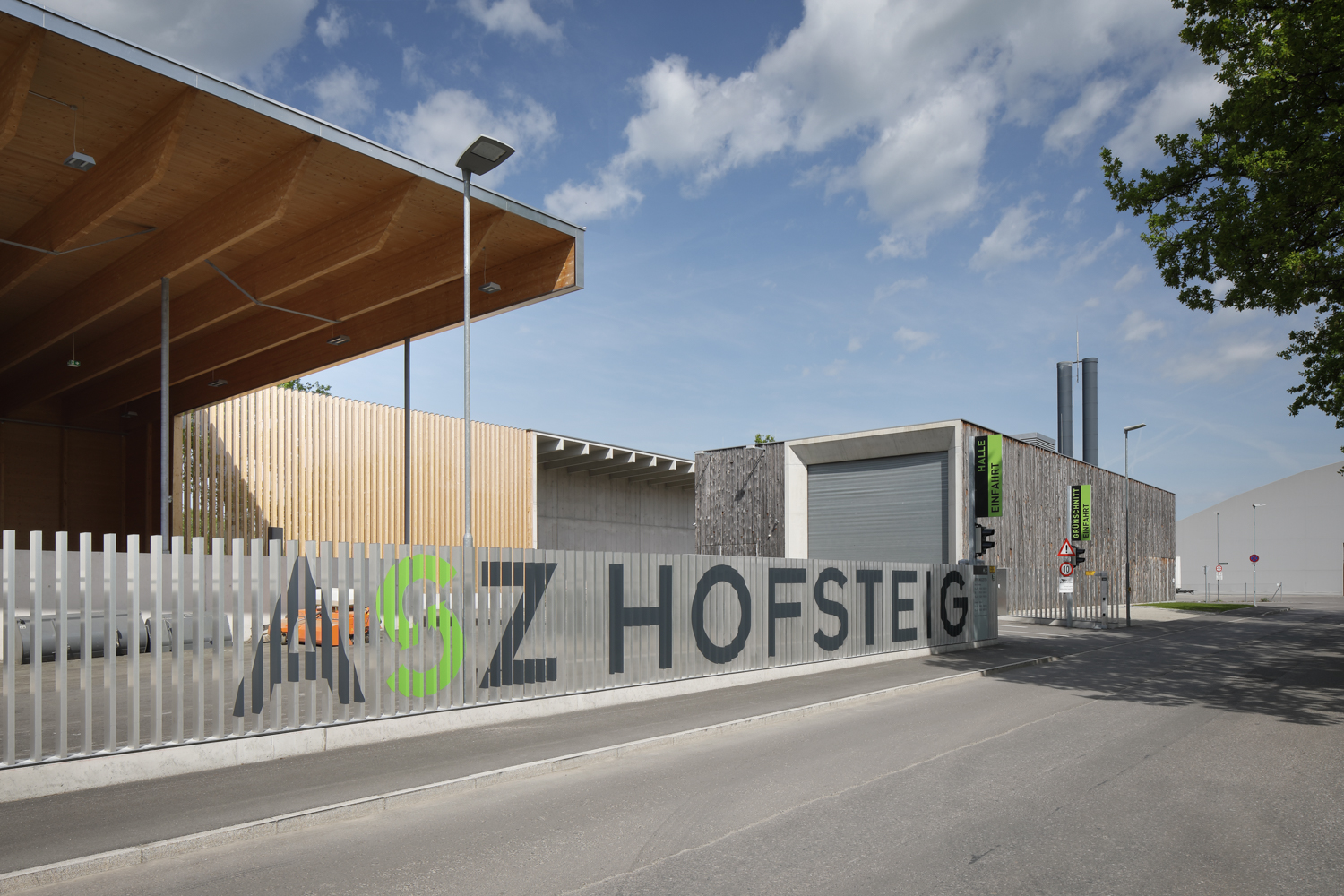

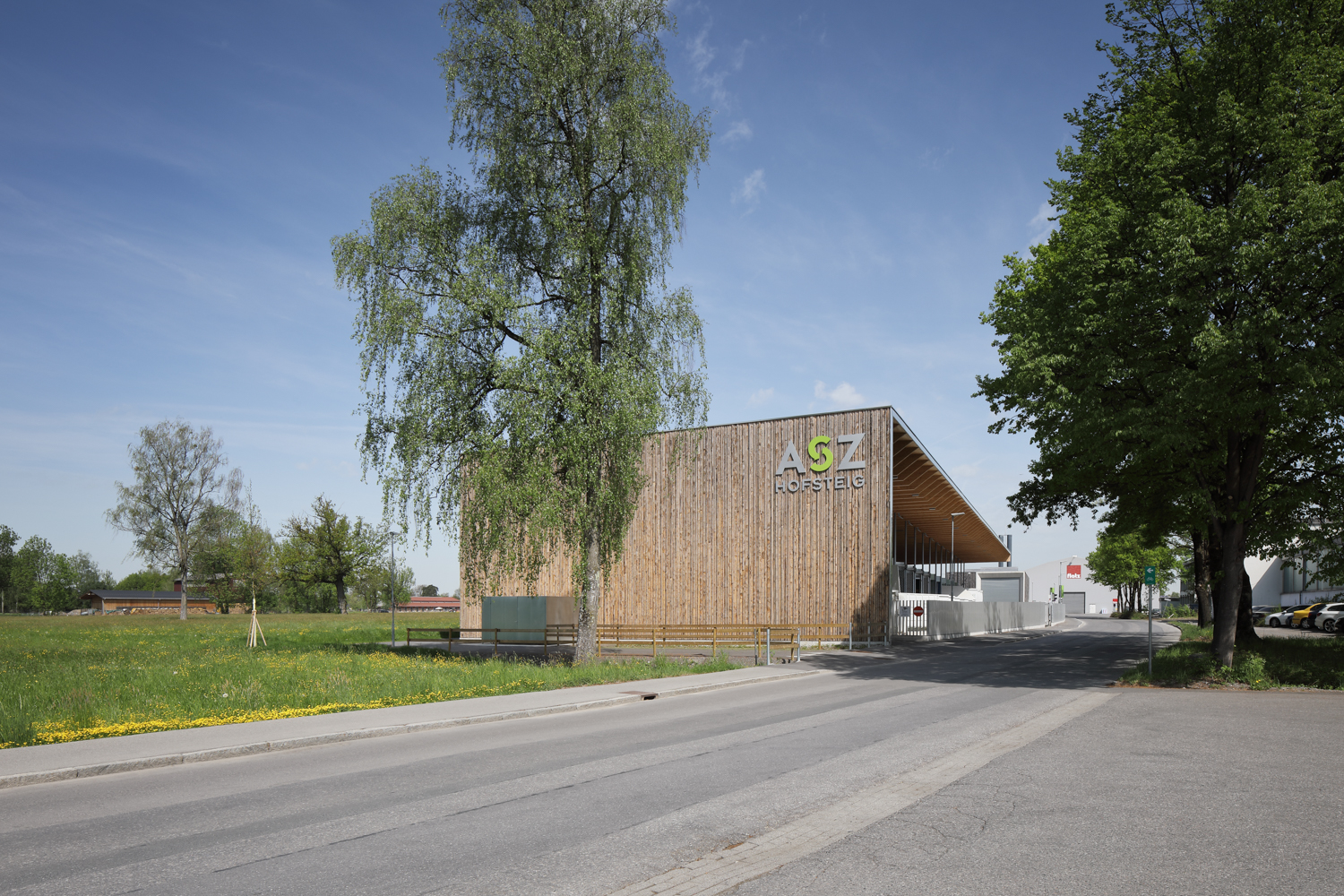

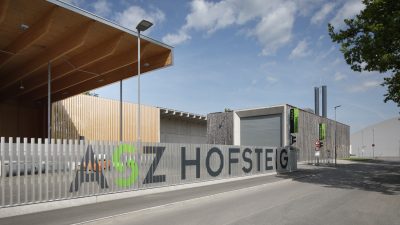

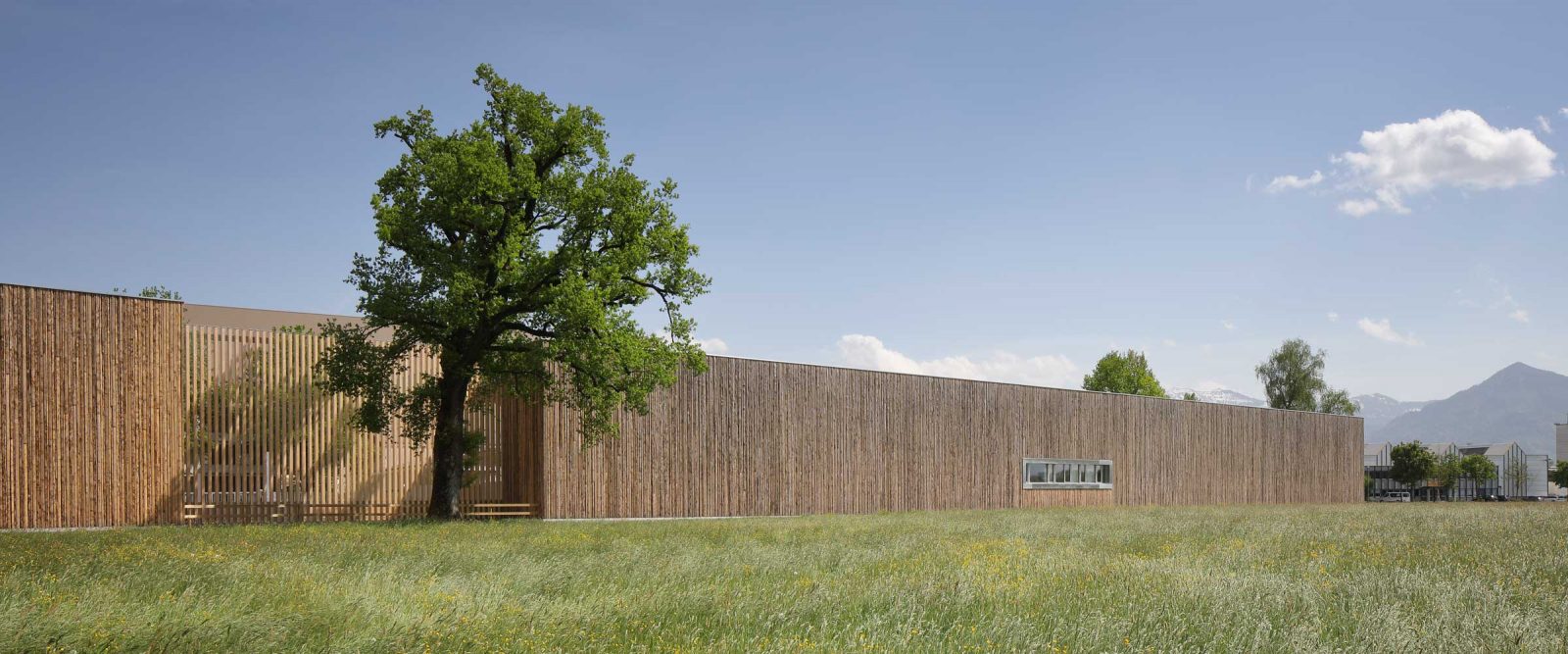

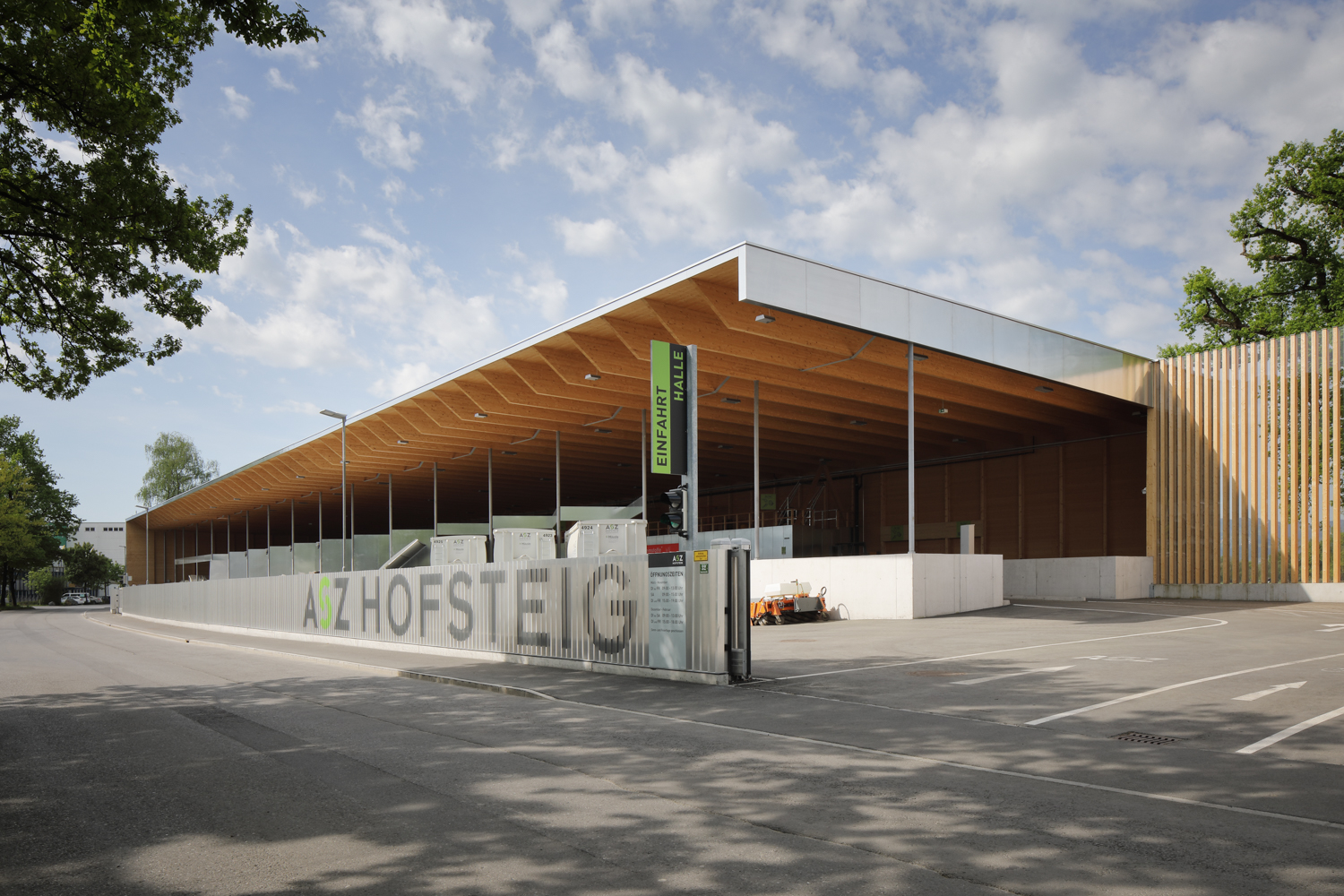

In the context of the nature reserve, a reed bed, and the neighbours, the building is largely closed for soundproofing reasons, but with specifically clears views of the surrounding nature from the driveway area. On the Industriestraße, the building presents itself as an open-plan stage, on which the recycling takes place.

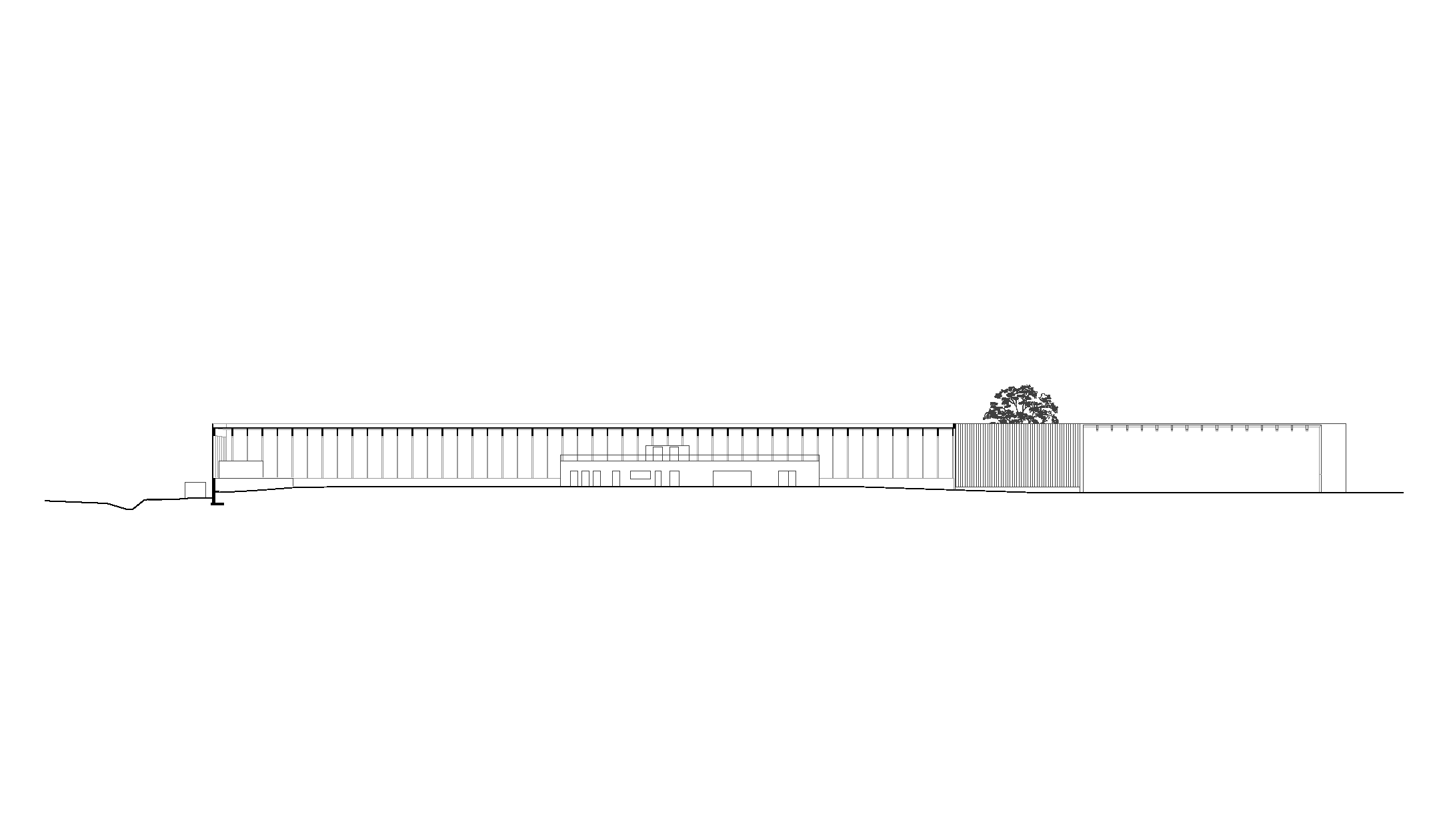

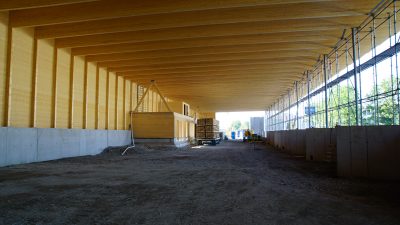

The hall has a total length of 100 m and a width of 25 m, with a clear height of 6.5 m and offers enough space for increased demand.

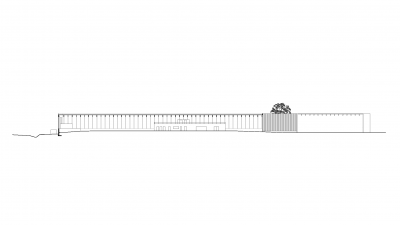

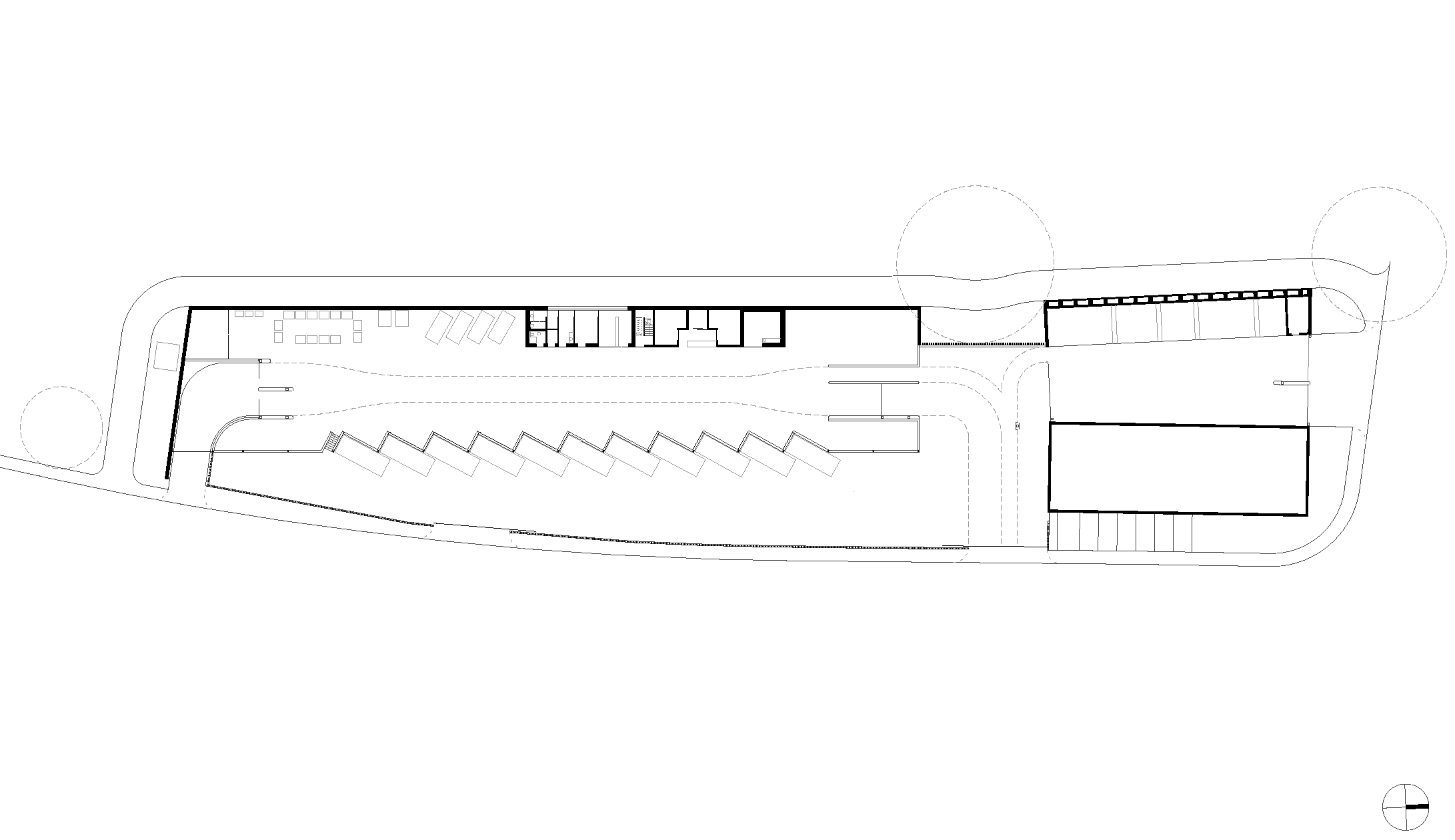

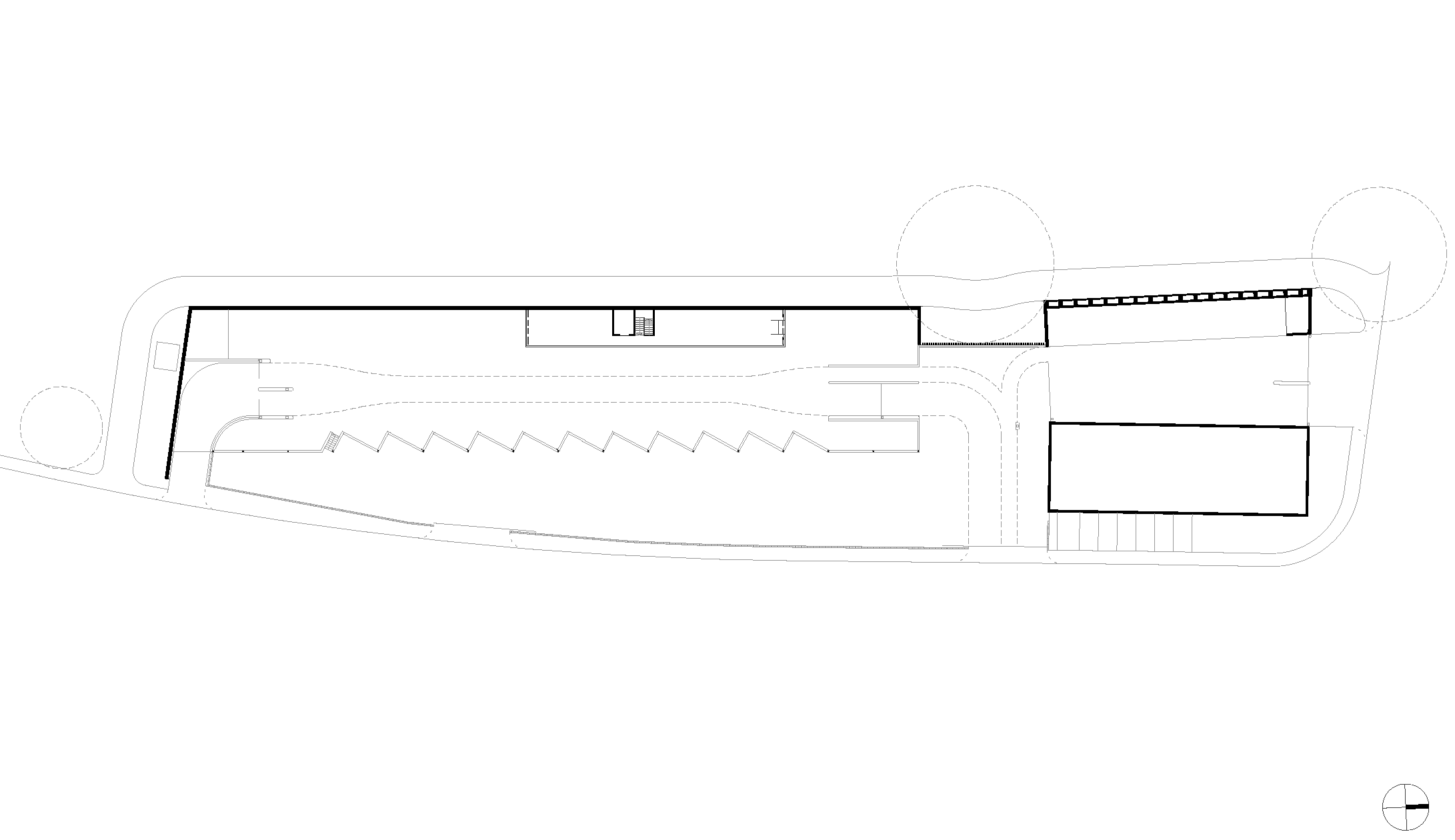

Projektpläne

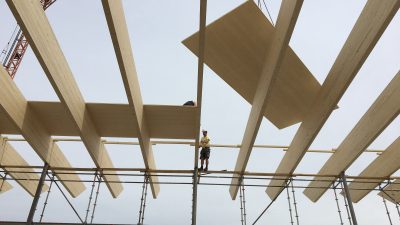

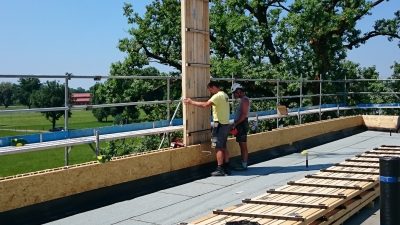

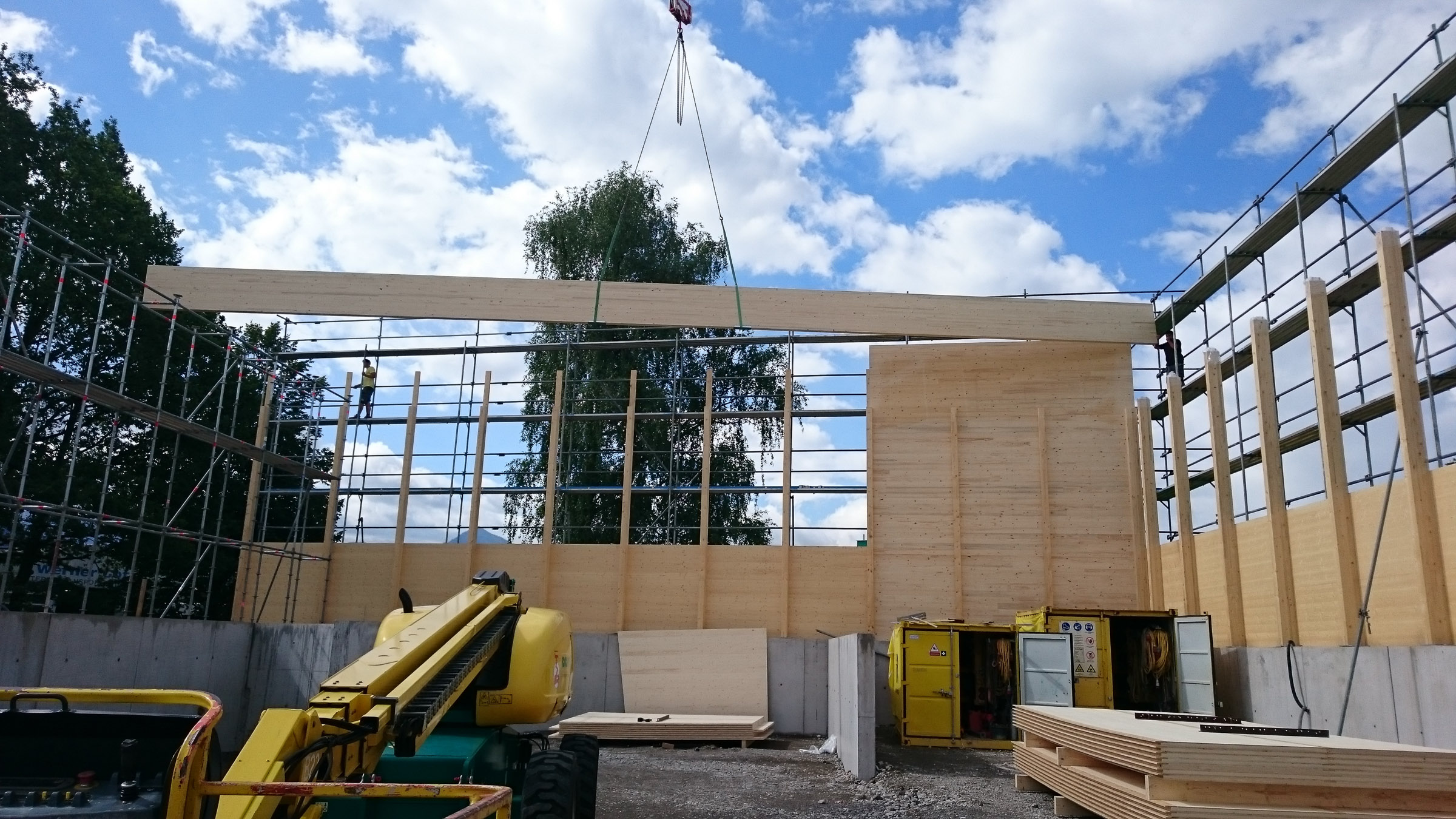

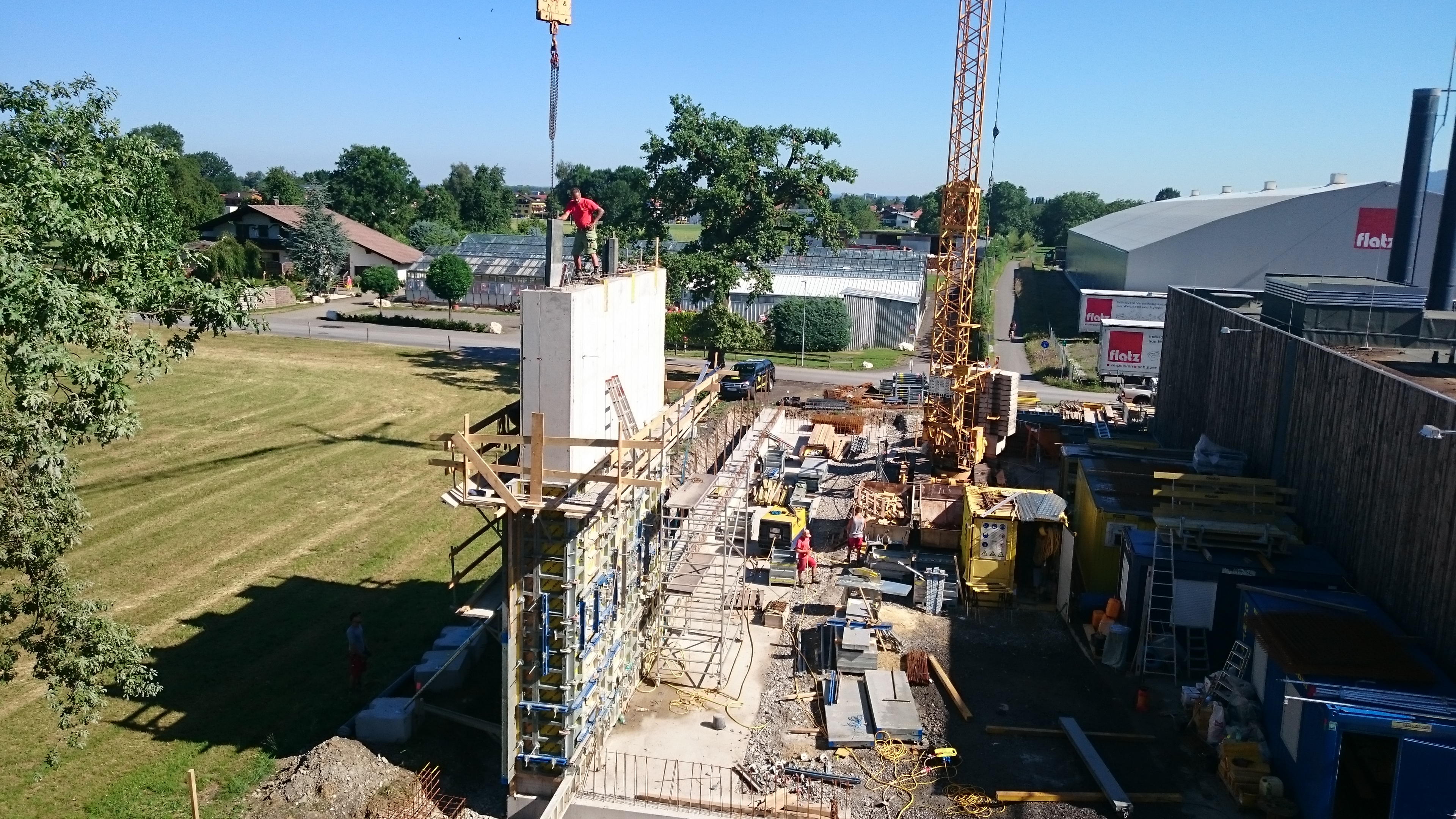

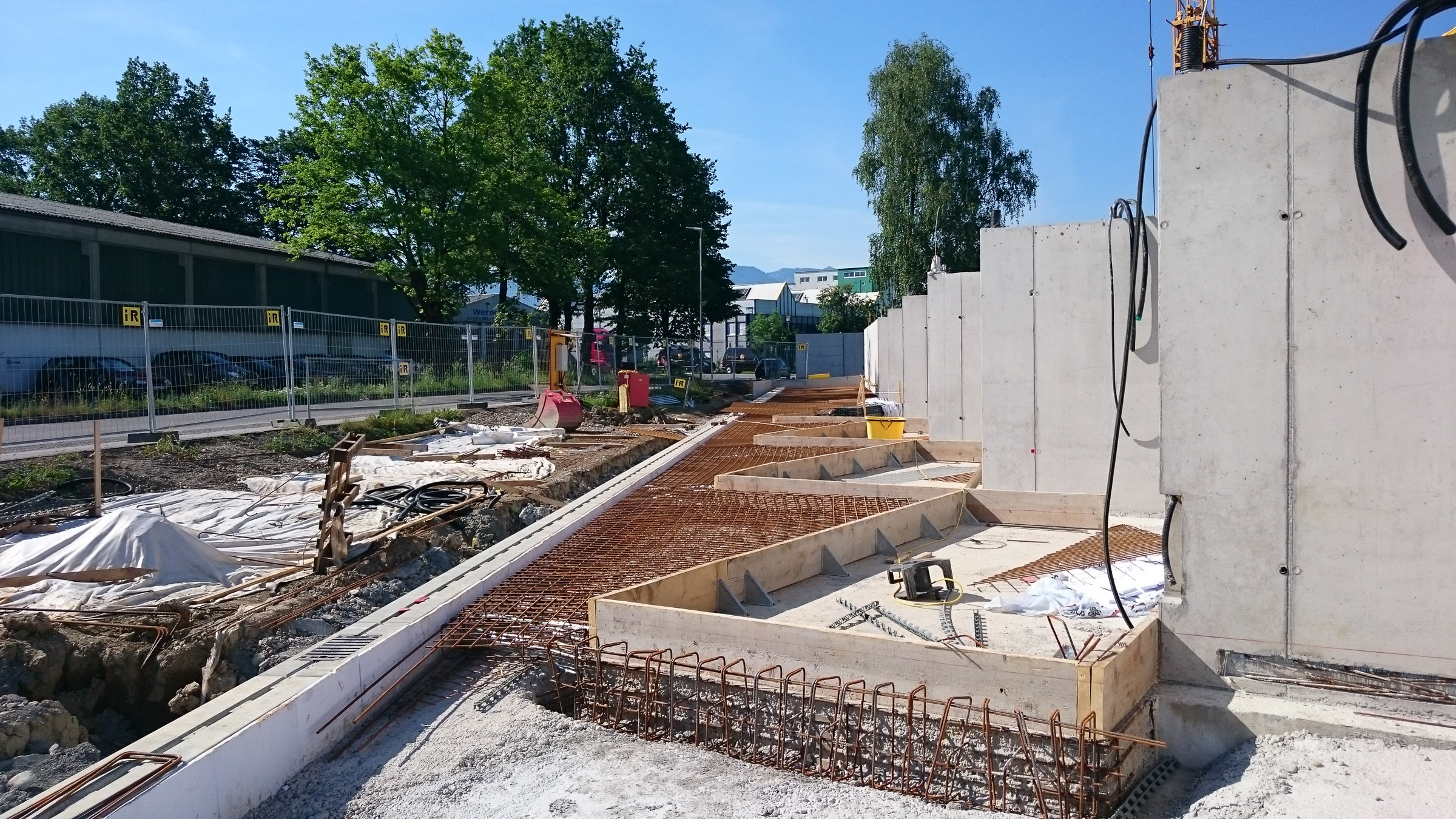

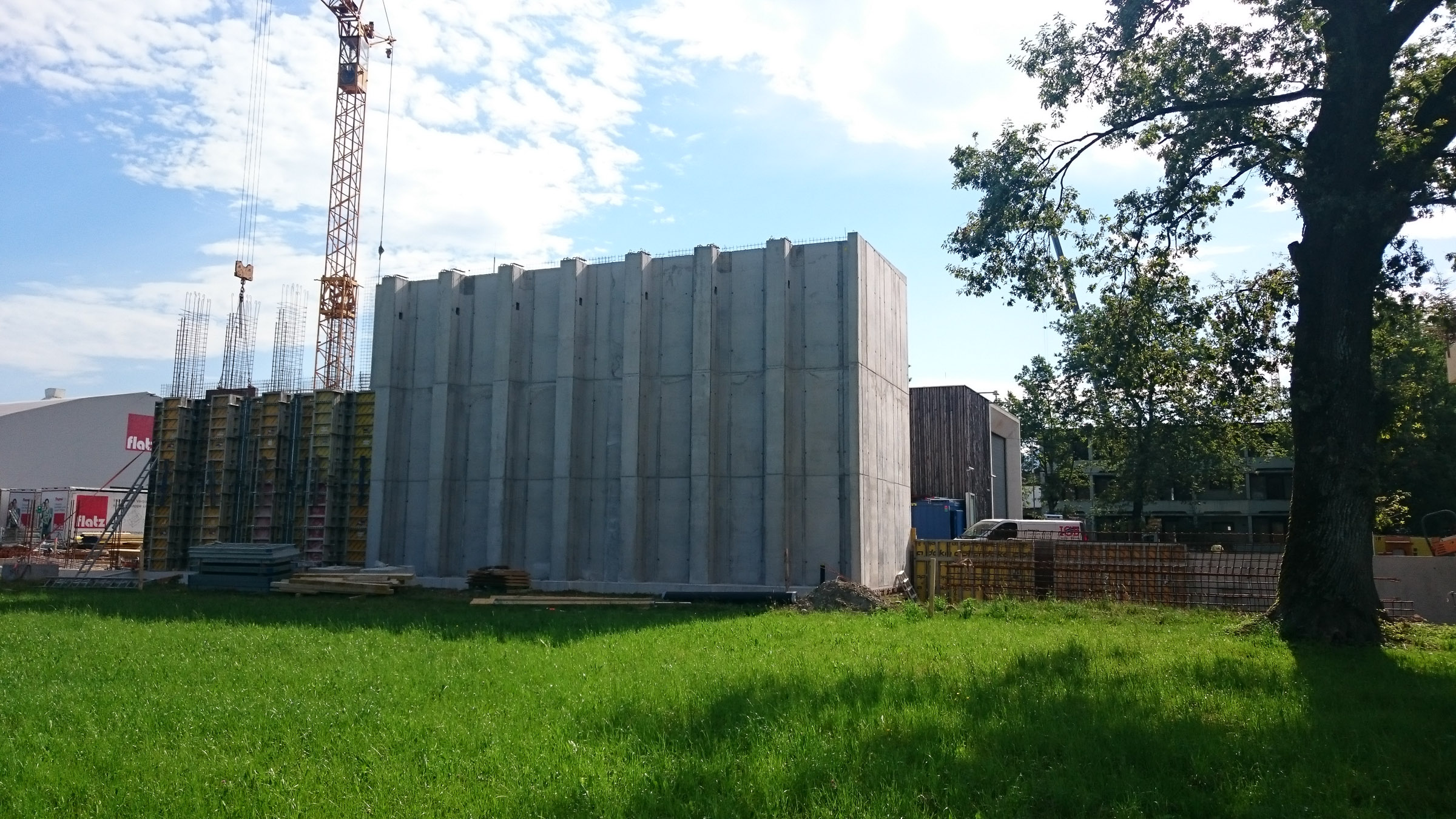

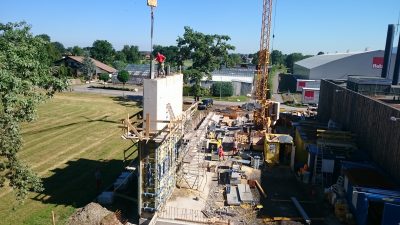

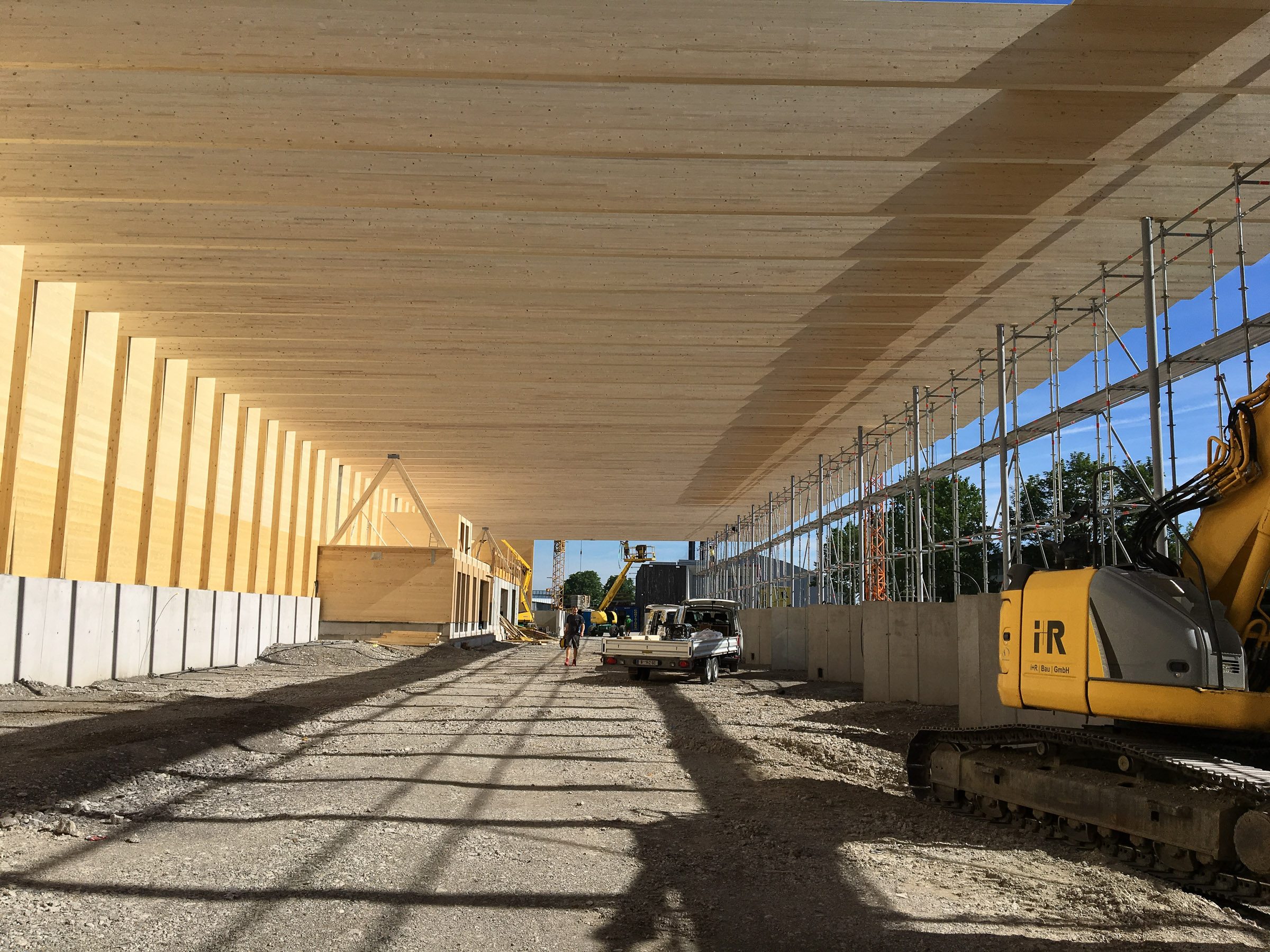

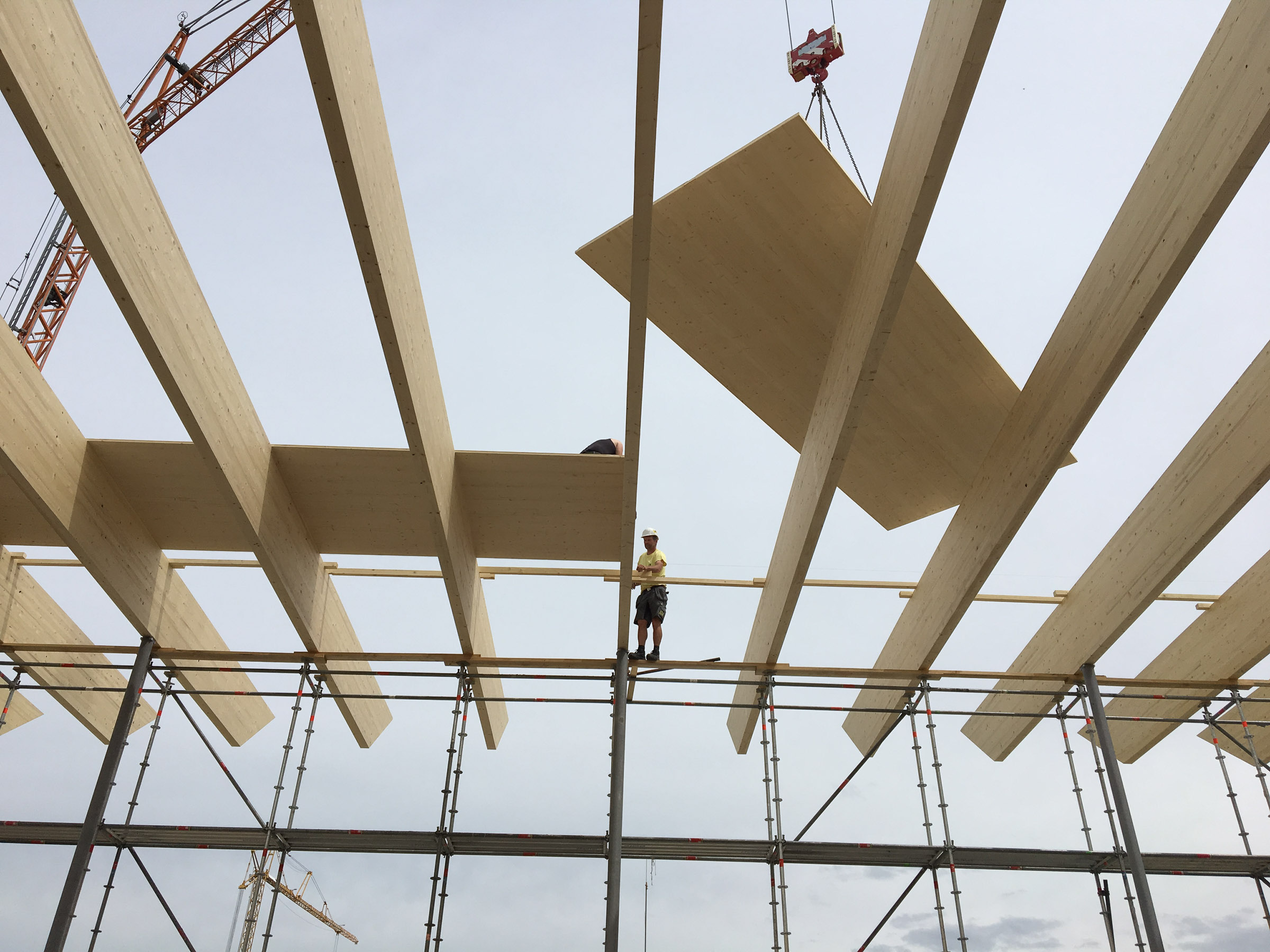

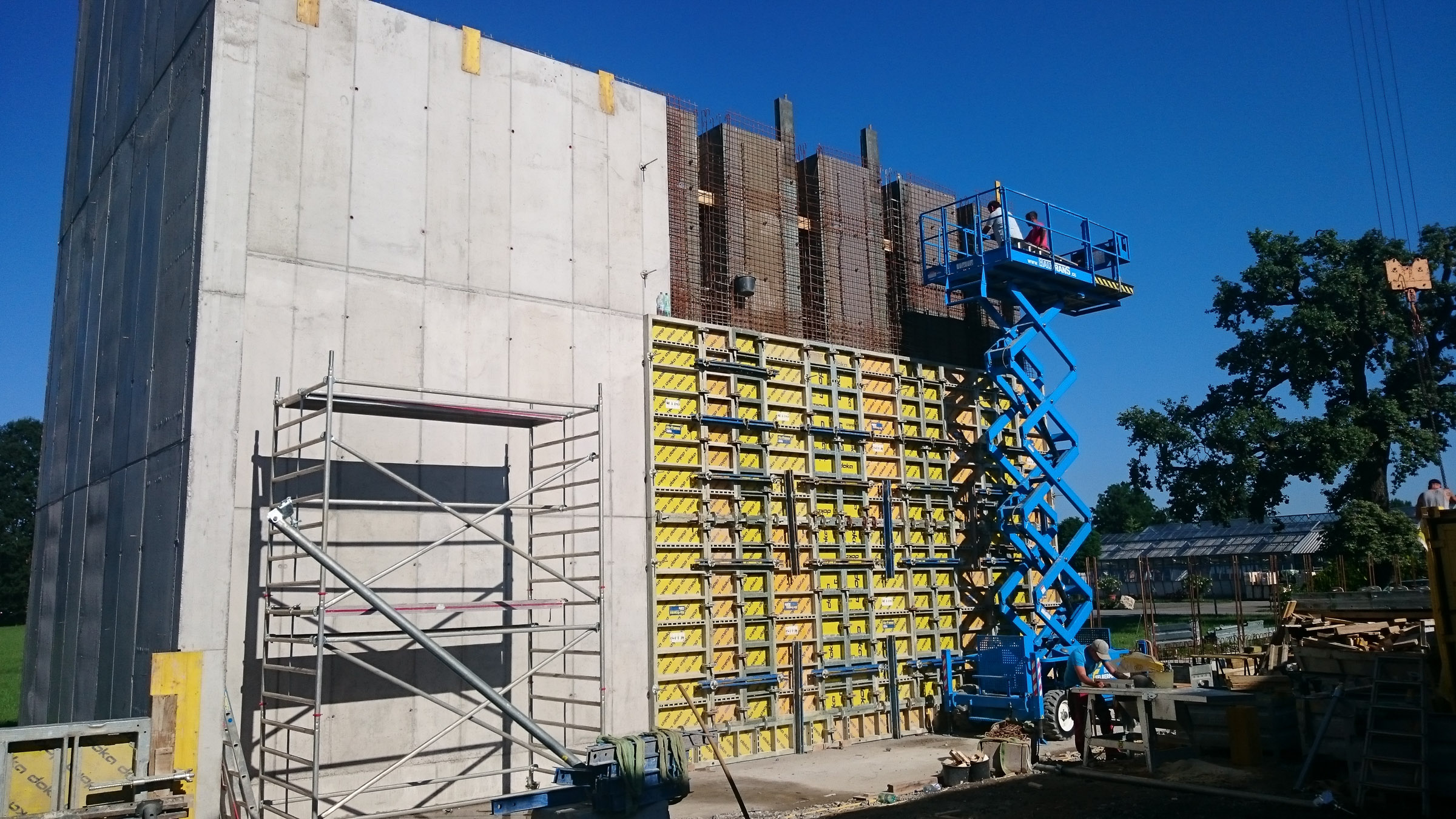

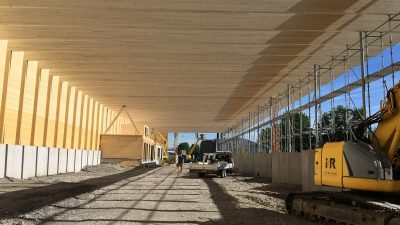

Baufotos
Public
- ASZ – Recycling Center
ZN Z-390, Tina Mott, Timber Arch. Vol. 02, S. 90-95
